Ultra-Fine Gr1 Titanium Wire Drawing Process and Quality Control: Which Diameter Achieves the Tightest Tolerance?

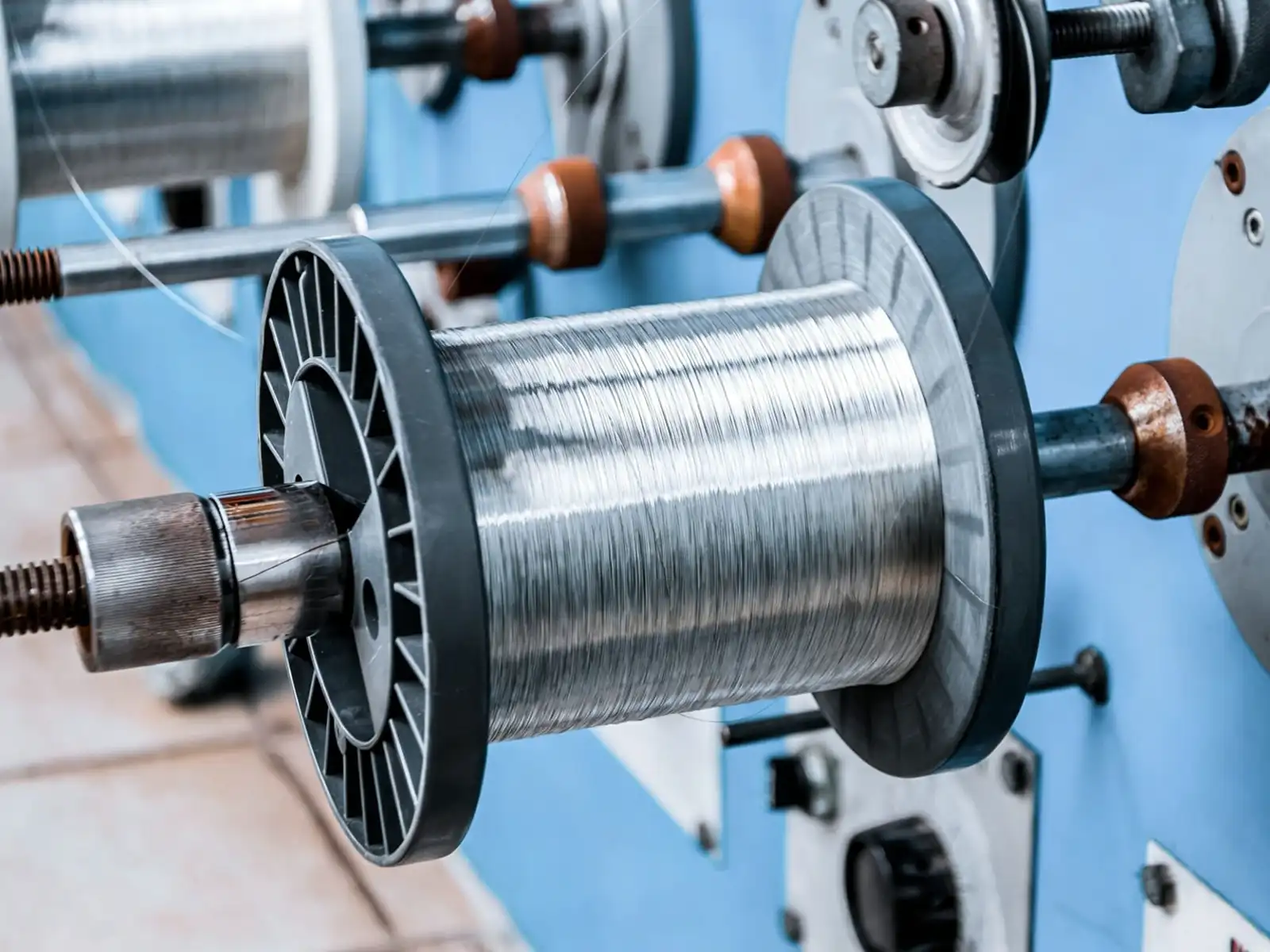

Gr1 Titanium Wire Ultra-fine Gr1 commercially pure titanium wire (diameter <= 0.1 mm) represents the pinnacle of titanium wire drawing technology, requiring exceptional process control and quality management. This article examines the ultra-fine drawing process for Gr1 titanium wire and the quality control measures essential for achieving consistent dimensional tolerance and surface quality.

1. Ultra-Fine Drawing Process

(1) Process Sequence

Gr1 titanium wire ultra-fine drawing follows a multi-stage sequence: initial wire rod preparation (phi 5-10 mm) -> intermediate drawing to phi 1-2 mm -> fine drawing to phi 0.1-0.5 mm -> ultra-fine drawing to phi 0.02-0.1 mm. Each stage requires appropriate die material, lubrication, and drawing speed optimization.

(2) Die Design and Wear

Ultra-fine drawing requires precision-ground CVD diamond dies with entrance angles of 4-8 degrees and bearing lengths of 0.1-0.3 mm. Die wear monitoring is critical; replacement after 500-1000 meters of drawing prevents diameter growth and surface defects.

2. Quality Control Measures

(1) Dimensional Tolerance

Ultra-fine Gr1 titanium wire diameter tolerance of +/- 0.002 mm for phi 0.05-0.1 mm requires online laser micrometry with closed-loop drawing speed control. Automatic diameter adjustment maintains tolerance within 2 micrometers over continuous production runs.

(2) Surface Quality

Surface roughness Ra <= 0.1 micrometers for ultra-fine Gr1 titanium wire is achieved through precision polishing dies, clean lubrication systems, and controlled drawing environment (ISO Class 7 cleanroom minimum). Wire straightness deviation <= 1 mm/m ensures consistent performance in downstream applications.

(3) Mechanical Properties

Ultra-fine Gr1 titanium wire tensile strength increases to 400-500 MPa due to grain refinement and work hardening at sub-0.1 mm diameters. Elongation decreases to 10-15% but remains adequate for most fine wire applications including medical sutures, electronic leads, and precision springs.

3. Applications of Ultra-Fine Gr1 Titanium Wire

Ultra-fine Gr1 titanium wire is used in medical devices (sutures, stent components, electrode leads), electronics (wire bonding, EMI shielding), precision instrumentation (sensor elements, thermocouple wires), and research applications (micro-electrodes, filtration membranes).

Conclusion

Ultra-fine Gr1 titanium wire drawing requires sophisticated process control, precision tooling, and rigorous quality management. The resulting wire delivers exceptional dimensional accuracy, surface quality, and mechanical performance for demanding applications across medical, electronics, and precision engineering industries.

FAQ

Q1: What is the minimum diameter achievable for Gr1 titanium wire?

Gr1 titanium wire can be drawn down to phi 0.02 mm (20 micrometers) with proper tooling and process control.

Q2: How does ultra-fine drawing affect Gr1 titanium wire properties?

Ultra-fine drawing increases tensile strength by 50-80% through work hardening while reducing elongation to 10-15%.

Q3: What environment is required for ultra-fine wire production?

Cleanroom ISO Class 7 minimum to prevent contamination and surface defects during drawing.
