How to Evaluate Gr2 Titanium Wire Surface Cleanliness Through Sample Wire Testing: Which Testing Method Is Most Reliable?
- Gr2 Titanium Wire

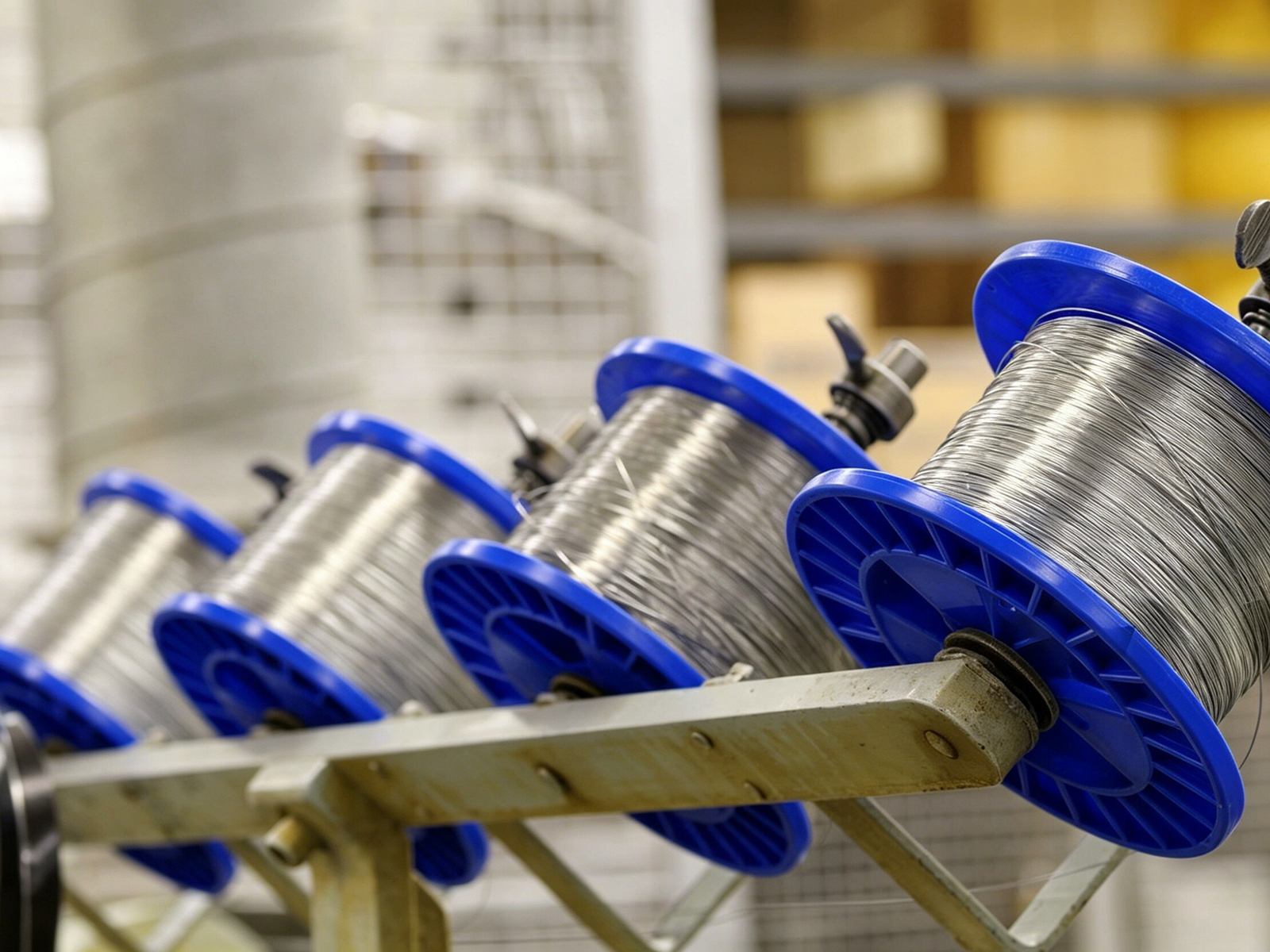

Gr2 Titanium Wire Surface cleanliness of Gr2 commercially pure titanium wire is critical for subsequent processing operations including coating, welding, and medical device fabrication. Contaminants such as oil, grease, oxide scale, and particulate matter can compromise product quality and service performance. This article examines sample wire testing methods for evaluating Gr2 titanium wire surface cleanliness and provides guidance for quality control.
1. Surface Contamination Types
(1) Organic Contaminants
Gr2 titanium wire surface oils and greases originate from drawing lubricants, handling, and storage. These contaminants appear as invisible films that interfere with adhesion, welding, and surface treatment processes.
(2) Inorganic Contaminants
Oxide scale, machining residues, and airborne particulates deposit on Gr2 titanium wire during production and handling. Visible contamination appears as discoloration, staining, or surface roughness.
| Contaminant Type | Detection Method | Acceptance Criterion | Removal Method |
|---|---|---|---|
| Drawing Oil/Grease | Water break test, FTIR | No break > 5 sec | Solvent cleaning, alkaline wash |
| Oxide Scale | Visual, microscopy | No visible discoloration | Acid pickling (HF-HNO3) |
| Particulate Matter | Particle counter, tape test | < 10 particles/cm2 | Ultrasonic cleaning, DI water rinse |
| Hand Oil | UV fluorescence | No fluorescence under UV | Isopropanol wipe, vapor degreasing |
2. Sample Wire Testing Procedures
(1) Water Break Test
The water break test evaluates organic contamination by observing water film stability on cleaned Gr2 titanium wire surface. A continuous water film lasting > 5 seconds indicates acceptable cleanliness. This simple test is widely used in production environments.
(2) Fluorescent Penetrant Inspection
Fluorescent penetrant inspection under UV light (365 nm) detects surface defects and contamination on Gr2 titanium wire. Contaminated areas appear as dark spots against fluorescent background, enabling quantitative assessment.
(3) Fourier Transform Infrared Spectroscopy (FTIR)
FTIR analysis of Gr2 titanium wire surface extracts identifies organic contaminant chemistry (hydrocarbon oils, silicone compounds, emulsion residues) and enables targeted cleaning process selection.
3. Cleaning and Surface Preparation
Effective Gr2 titanium wire surface cleaning combines alkaline washing (60-80 degrees C, 5-15 min), ultrasonic cleaning in isopropanol or acetone (5-10 min), and final rinsing in deionized water (resistivity >= 18 Mohm-cm). Drying under clean filtered air or nitrogen completes the process.
Conclusion
Gr2 titanium wire surface cleanliness evaluation requires systematic testing using water break, fluorescent penetrant, and FTIR methods. Proper cleaning protocols ensure contaminant-free surfaces suitable for coating, welding, and medical device applications.
FAQ
Q1: How often should Gr2 titanium wire surface cleanliness be tested?
Surface cleanliness should be verified at production startup, after each cleaning cycle, and periodically (every 8 hours) during continuous operation.
Q2: What is the most sensitive contamination detection method?
FTIR spectroscopy detects organic contaminants at ppm levels, making it the most sensitive method for contamination identification.
Q3: Can Gr2 titanium wire be cleaned without damaging the surface?
Yes, mild alkaline cleaning at 60-70 degrees C with ultrasonic assistance effectively removes contaminants without affecting the titanium surface.
Contact Us
Baoji Titanium Valley Titanium Nickel Zirconium Material Processing Co., Ltd. supplies clean Gr2 titanium wire. Contact us at sales@titaniumvalleys.com.
References
[1] ASTM E165-22. Standard Practice for Liquid Penetrant Examination.
[2] ISO 8502-6:2018. Preparation of Steel Surfaces Before Application of Paints and Related Products-Surface Cleanliness.
[3] ASM Handbook Volume 5: Surface Engineering[M]. ASM International, 2022.
