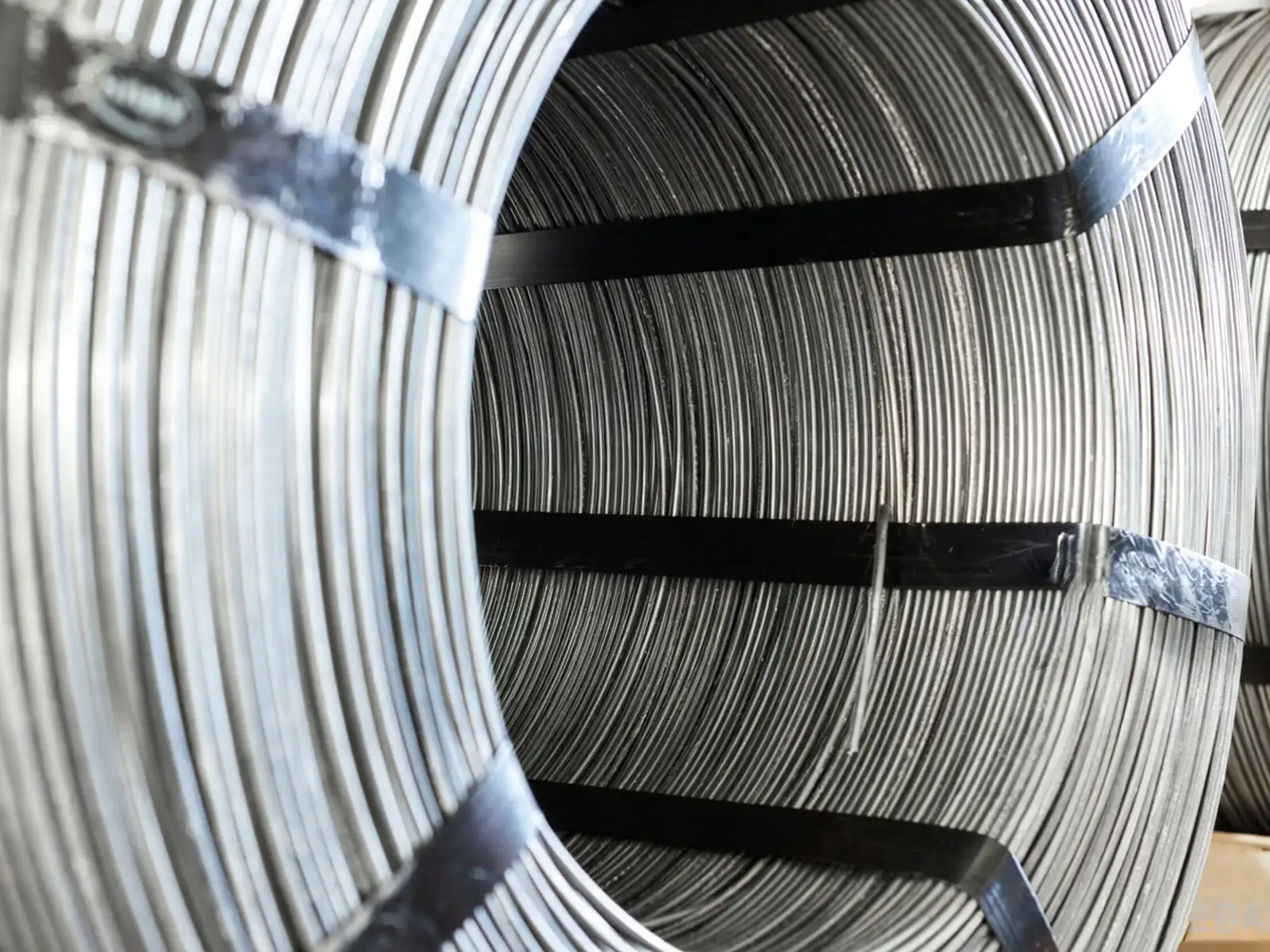

How Does ASTM B550 Zirconium Wire Solve Corrosion Problemsin Urea Production Equipment?

1. Introduction

Corrosion of ammonium carbamate solution, pitting corrosion caused by chloride ions, and stress corrosion cracking constitute the three core challenges facing urea production facilities. Under high-temperature and high-pressure conditions, the extreme corrosive environment formed by the mixture of ammonia, carbon dioxide, and ammonium carbamate solution causes rapid failure of conventional stainless steel equipment. Among various solutions, zirconium materials have emerged as the preferred material for urea synthesis tower linings and heat exchanger tubes due to their unique corrosion resistance mechanisms. This article provides an in-depth analysis of the technical advantages of ASTM B550 zirconium wire in urea production, covering corrosion mechanisms, the corrosion resistance performance of zirconium materials, and practical application case studies.

2. Characteristics of the Severe Corrosion Environment in Urea Production

(1) Corrosion Mechanism of High-Temperature Ammonium Carbamate Solution

The temperature inside the urea synthesis tower typically ranges from 185°C to 210°C, with pressures reaching 14–24 MPa. Under these operating conditions, the ammonium carbamate solution exhibits intense corrosiveness. The weak acid-weak base system formed by free ammonia and carbon dioxide in the liquid phase continuously destroys the passive film on metal surfaces. Experimental data show that the corrosion rate of 316L stainless steel in this environment reaches 0.5–2.0 mm/year, and it is highly susceptible to pitting corrosion and crevice corrosion.

(2) Localized Corrosion Effect of Chloride Ions

Trace amounts of chloride ions (typically 0.1–5 ppm) remaining in the synthesis feed gas become highly concentrated in the concentration and evaporation sections, forming a high-concentration chloride environment. Chloride ions possess exceptional penetrating power and can disrupt the oxide film on stainless steel surfaces, initiating localized pitting that progresses into stress corrosion cracking (SCC). Research indicates that when Cl⁻ concentration exceeds 10 ppm, the probability of SCC failure in 316L stainless steel surpasses 60%.

(3) Synergistic Corrosion of Ammonia and Carbon Dioxide

During urea synthesis, NH₃ and CO₂ form ammonium carbamate (NH₂COONH₄) in the liquid phase. The H⁺ ions released upon dissociation of this compound in water undergo electrochemical reactions with metal surfaces, accelerating matrix dissolution. Particularly at the gas-liquid interface and agitator regions, the synergistic effect of erosion-corrosion and chemical corrosion increases material loss rates by 3–5 times.

3. Corrosion Resistance Mechanisms and Performance Advantages of Zirconium

(1) Self-Healing Characteristics of the Passive Film

When zirconium materials are exposed to oxygen-containing or moisture-containing environments, a dense ZrO₂ passive film (approximately 50–200 nm thick) forms on the surface instantaneously. This oxide film possesses exceptionally high chemical stability and remains stable across a broad pH range of 1–14. More importantly, when the passive film suffers mechanical damage, the freshly exposed zirconium surface reacts immediately with oxygen or water in the environment, completing self-healing within milliseconds.

(2) Absolute Resistance to Chloride Ion Corrosion

Unlike stainless steel, the oxide film on zirconium materials is unaffected by chloride ions. Regardless of Cl⁻ concentration, the ZrO₂ film does not experience pitting or crevice corrosion. This characteristic gives zirconium materials irreplaceable advantages in the concentration and evaporation sections of urea plants—areas where chloride ions accumulate.

(3) Long-Term Stability Under High Temperature and Pressure

Under urea synthesis conditions of 185–210°C and 14–24 MPa, the corrosion rate of ASTM B550 zirconium wire is below 0.001 mm/year, which is virtually negligible. By comparison, Hastelloy C-276 exhibits a corrosion rate of 0.05–0.1 mm/year, and duplex stainless steel 2205 shows a corrosion rate of 0.1–0.3 mm/year.

(4) Corrosion Rate Comparison Across Materials

4. Practical Application Case Studies

Case Study 1: Synthesis Tower Lining Retrofit at a Large-Scale Urea Plant

A urea plant with an annual capacity of 800,000 metric tons originally employed 316L stainless steel lining. After 3 years of operation, multiple areas developed pitting perforations, with cumulative maintenance costs exceeding $2 million. Following a 2019 retrofit to ASTM B550 zirconium wire welded lining, the equipment operated continuously for 5 years with zero corrosion issues, saving approximately $800,000 annually in maintenance costs.

Case Study 2: Heat Exchanger Tube Replacement at Ammonium Carbamate Condenser

The ammonium carbamate condenser at a fertilizer plant originally used titanium tubes, which frequently failed due to chloride ion-induced SCC after 2 years of operation. After replacement with ASTM B550 zirconium tubes, the equipment service life extended beyond 10 years, with stable heat transfer efficiency and no need for periodic tube replacement.

(3) Comparative Performance by Corrosion Location

5. Economic Analysis and Selection Recommendations

Although the initial procurement cost of ASTM B550 zirconium wire is approximately 8–10 times that of 316L stainless steel, its exceptionally long service life and minimal maintenance requirements result in significantly lower total lifecycle costs. For an 800,000 metric ton/year urea plant, the 10-year total cost of zirconium-lined equipment is approximately 35% lower than that of stainless steel alternatives.

(1) Cost Comparison Over 10-Year Lifecycle

Note: Costs expressed in units of 10,000 Chinese Yuan (CNY).

(2) Material Selection Recommendations

• Synthesis tower lining: Adopt ASTM B550 zirconium plate welded structure, thickness 3–5 mm.
• Heat exchanger tubes: Select ASTM B550 zirconium tubes, outer diameter 19–25 mm, wall thickness 1.5–2.0 mm.
• Piping and valves: Prioritize zirconium ball valves and butterfly valves; overlay weld zirconium alloy on sealing surfaces.

6. Conclusion

With its outstanding passive film self-healing capability, absolute resistance to chloride ion corrosion, and long-term stability under high temperature and pressure, ASTM B550 zirconium wire represents the optimal solution for addressing corrosion problems in urea production equipment. For new or retrofit urea projects, it is recommended to incorporate zirconium material selection at the design stage to achieve maximum economic benefits across the full lifecycle.

FAQ

Q1: What is the difference between ASTM B550 zirconium wire and pure zirconium?

A: ASTM B550 is the standard specification for zirconium and zirconium alloy bars, rods, and profiles, covering materials such as R60702 (pure zirconium) and R60705 (zirconium-niobium alloy). R60702 corresponds to commercially pure zirconium (Grade 2), while R60705 is a zirconium-niobium strengthened alloy. Both are compliant with the ASTM B550 standard.

Q2: What special welding requirements exist for zirconium in urea plants?

A: Zirconium readily absorbs oxygen and nitrogen at elevated temperatures. Welding must be performed under argon gas protection, with the shielding gas purity required to be >=99.99%. Post-weld pickling treatment is necessary to remove oxidation colors and ensure corrosion resistance of the weld zone.

Q3: Is the cost of zirconium material too high?

A: Although the initial cost is higher, considering the service life and maintenance costs comprehensively, the total lifecycle cost of zirconium in urea plants is lower than that of stainless steel and titanium. For critical corrosion-prone components, zirconium represents the most economical choice.
