What Are the Specific Medical Applications of Gr1 Titanium Bars?

Medical Applications of Gr1 Titanium Bars: A Comprehensive Technical Overview

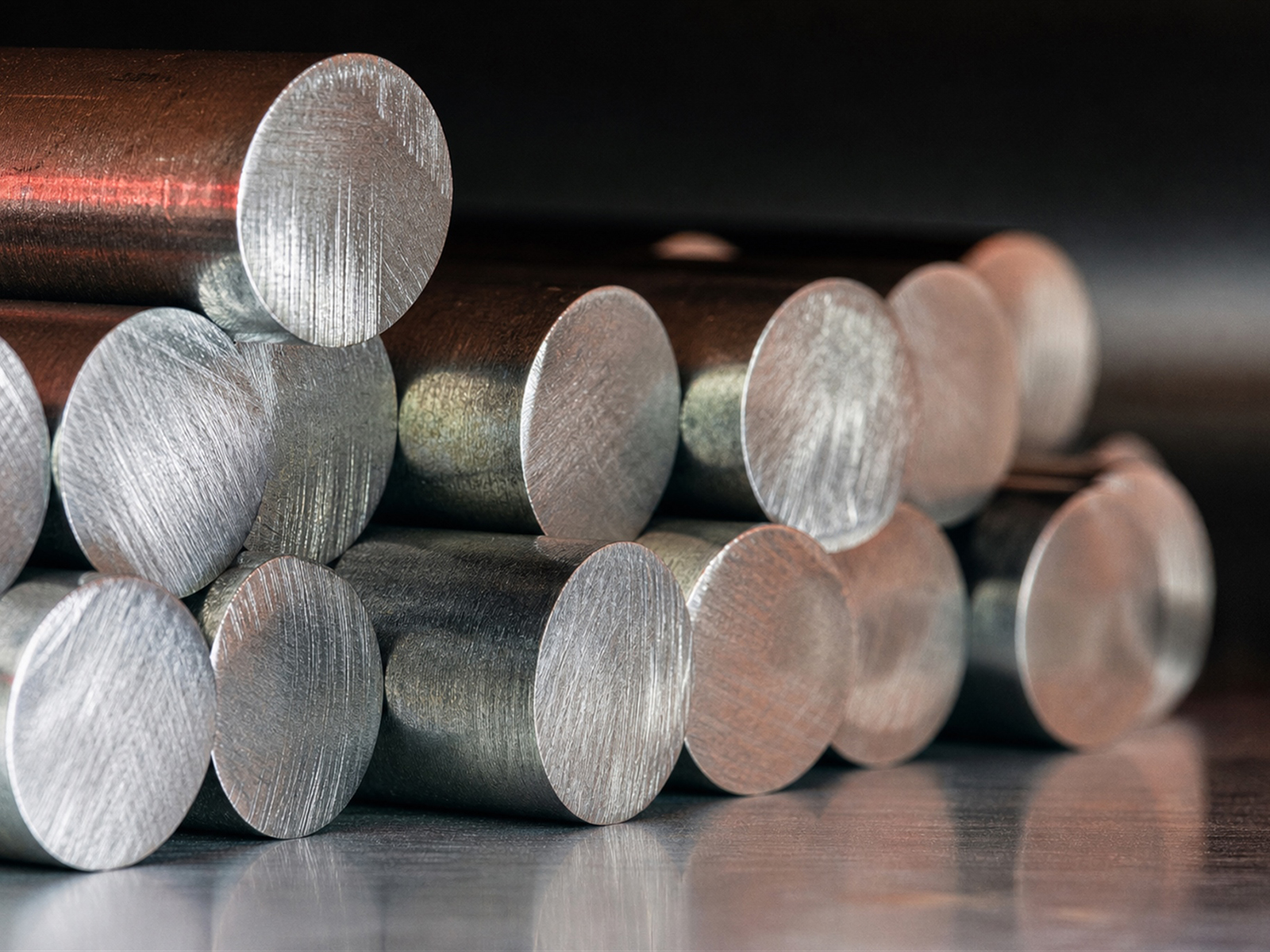

Gr1 titanium bars, as a high-purity commercially pure titanium material, hold significant application value in the medical industry. With excellent biocompatibility, non-toxicity, non-magnetism, and superior corrosion resistance, Gr1 titanium bars are suitable for orthopedic implants, dental restorations, surgical instruments, and medical equipment manufacturing. From hip joint replacements to dental implants, from scalpel handles to diagnostic equipment frames, Gr1 titanium bars—with over 99.5% titanium content and good ductility—can meet the processing requirements of complex medical components. This article systematically introduces the specific applications of Gr1 titanium bars in the medical industry across four major dimensions: orthopedics, dentistry, surgical instruments, and medical equipment.

1. Applications of Gr1 Titanium Bars in Orthopedic Implants

1.1 Artificial Joint Prosthesis Manufacturing

Gr1 titanium bars are a common raw material for manufacturing artificial joint prostheses such as hip and knee joints. Through precision turning and polishing processes, they can be machined into load-bearing components including femoral stems and acetabular cups. The material’s high ductility (elongation ≥24%) enables complex curved surface machining, while its naturally formed oxide layer facilitates osseointegration with human bone tissue. Compared to conventional stainless steel prostheses, Gr1 titanium implants are lighter in weight and exhibit lower metal ion release after long-term implantation, reducing the risk of foreign-body reactions and inflammation.

1.2 Spinal Internal Fixation Systems

Gr1 titanium bars can be machined into spinal fusion instruments such as pedicle screws and connection rods. Although their tensile strength (240–345 MPa) is lower than that of titanium alloys, it is sufficient to meet spinal stability requirements. The material’s non-magnetic property allows patients to undergo post-operative MRI scans without significant artifact generation—an advantage for long-term clinical follow-up. Fine-diameter titanium bars produced through cold drawing (φ4–8 mm) can be machined into micro-screws required for minimally invasive surgery, helping reduce incision size and shorten recovery periods.

1.3 Fracture Fixation Instruments

Gr1 titanium bars are widely used in the manufacture of orthopedic plates and bone screws for fracture fixation. The elastic modulus of titanium bone plates (approximately 110 GPa) is closer to that of human bone (10–30 GPa) compared to stainless steel (200 GPa), effectively reducing the stress shielding effect and preventing osteoporosis and refracture caused by uneven stress distribution. The biocompatibility of Gr1 titanium bars ensures long-term stability in the human bodily fluid environment without releasing harmful ions.

2. Applications of Gr1 Titanium Bars in Dental Restorations

2.1 Dental Implants

Gr1 titanium bars are the preferred material for manufacturing dental implants (artificial tooth roots). The TiO₂ oxide film naturally formed on the surface possesses good biologic inertness and can achieve firm osseointegration with the jawbone. Clinical data show that the 10-year success rate of Gr1 titanium implants exceeds 95%, significantly higher than that of cobalt-chromium alloy and stainless steel implants. Sandblasting and acid-etching surface treatments can further increase the osseointegration area and early-stage stability.

2.2 Dental Restoration Frameworks

Gr1 titanium bars can be used to fabricate metal frameworks for complete dentures and connectors for fixed bridges. Compared to traditional cast gold alloy frameworks, titanium frameworks reduce weight by approximately 40% and eliminate issues of metal allergy. The low thermal conductivity of titanium also prevents discomfort when consuming hot or cold foods.

2.3 Orthodontic Instruments

Gr1 titanium bars can be machined into orthodontic brackets, anchorage mini-implants (micro-screws), and other orthodontic auxiliary devices. The low elastic modulus of titanium reduces pain during orthodontic force transmission, while its non-magnetic property does not interfere with patients undergoing MRI examinations.

3. Applications of Gr1 Titanium Bars in Surgical Instruments

3.1 Scalpel Handles and Needle Holders

Gr1 titanium bars, after precision machining, are used to manufacture manual surgical instruments such as scalpel handles, needle holders, and tissue forceps. The lightweight nature of titanium reduces surgeon fatigue during prolonged procedures, while its high strength ensures rigidity and stability of the instruments during use. The titanium surface can be shot-peened to achieve a matte finish, minimizing glare reflection from bright operating room lights.

3.2 Minimally Invasive Surgical Instruments

Gr1 titanium bars can be machined into key components of laparoscopic surgical instruments, arthroscopic tools, and other minimally invasive surgical equipment. The low density and high strength-to-weight ratio of titanium enable minimizing overall instrument weight while maintaining structural integrity, improving surgical precision and controllability.

3.3 Sterilization and Disinfection Resistance

Instruments manufactured from Gr1 titanium bars can withstand repeated high-temperature and high-pressure steam sterilization (134°C / 2.1 bar), ethylene oxide (EtO) sterilization, and plasma sterilization without performance degradation or release of harmful substances. This characteristic is critical for surgical instruments requiring frequent re-sterilization.

4. Applications of Gr1 Titanium Bars in Medical Equipment

4.1 Diagnostic Equipment Structural Components

Gr1 titanium bars are used to manufacture patient tables and support frames for CT scanners and MRI equipment. The non-magnetic property of titanium ensures no interference in MRI environments, while its high strength guarantees equipment stability and safety. In CT equipment, the low atomic number of titanium reduces X-ray attenuation, contributing to improved image quality.

4.2 Rehabilitation Assistance Devices

Gr1 titanium bars can be machined into structural components for rehabilitation devices such as crutches, walkers, and wheelchair frames. The lightweight yet high-strength characteristics of titanium make rehabilitation equipment more portable and durable, facilitating daily patient use.

4.3 Medical Containers and Storage Equipment

Gr1 titanium bars are used in the manufacture of pharmaceutical storage containers and biological sample preservation equipment. The corrosion resistance of titanium ensures that container interiors are not corroded or contaminated by pharmaceuticals or biological samples, maintaining the purity of stored substances.

5. Conclusion

With its excellent biocompatibility, lightweight yet high strength, non-magnetic properties, and superior corrosion resistance, Gr1 titanium bars demonstrate extensive application prospects in the medical industry. From orthopedic implants to dental restorations, from surgical instruments to diagnostic equipment, Gr1 titanium bars have become an indispensable foundational material in modern healthcare. With continuous advancements in materials science and manufacturing processes, the application scope of Gr1 titanium bars in the medical field will continue to expand.

FAQ

Q1: Does Gr1 titanium bar comply with medical device regulations?

Yes. Gr1 titanium bars can obtain ISO 10993 biocompatibility certification and USP Class VI plastic-grade certification, complying with FDA and EU MDR medical device regulations. Gr1 titanium bars intended for implantable applications must also meet the ASTM F67 standard.

Q2: Can Gr1 titanium bars undergo surface modification treatments?

Yes. Gr1 titanium bars can be subjected to sandblasting, acid etching, anodization, plasma spraying of hydroxyapatite, and other surface modification treatments to enhance osseointegration capacity and wear resistance.

Q3: What sterilization methods are available for Gr1 titanium bars?

Gr1 titanium bars can withstand various sterilization methods including high-temperature and high-pressure steam (autoclave), ethylene oxide (EtO), gamma radiation, and plasma sterilization. The specific method depends on the instrument’s constituent materials and packaging format.
