Why Does Your Project Need High-Precision Customized TB13 Titanium Alloy Rod?

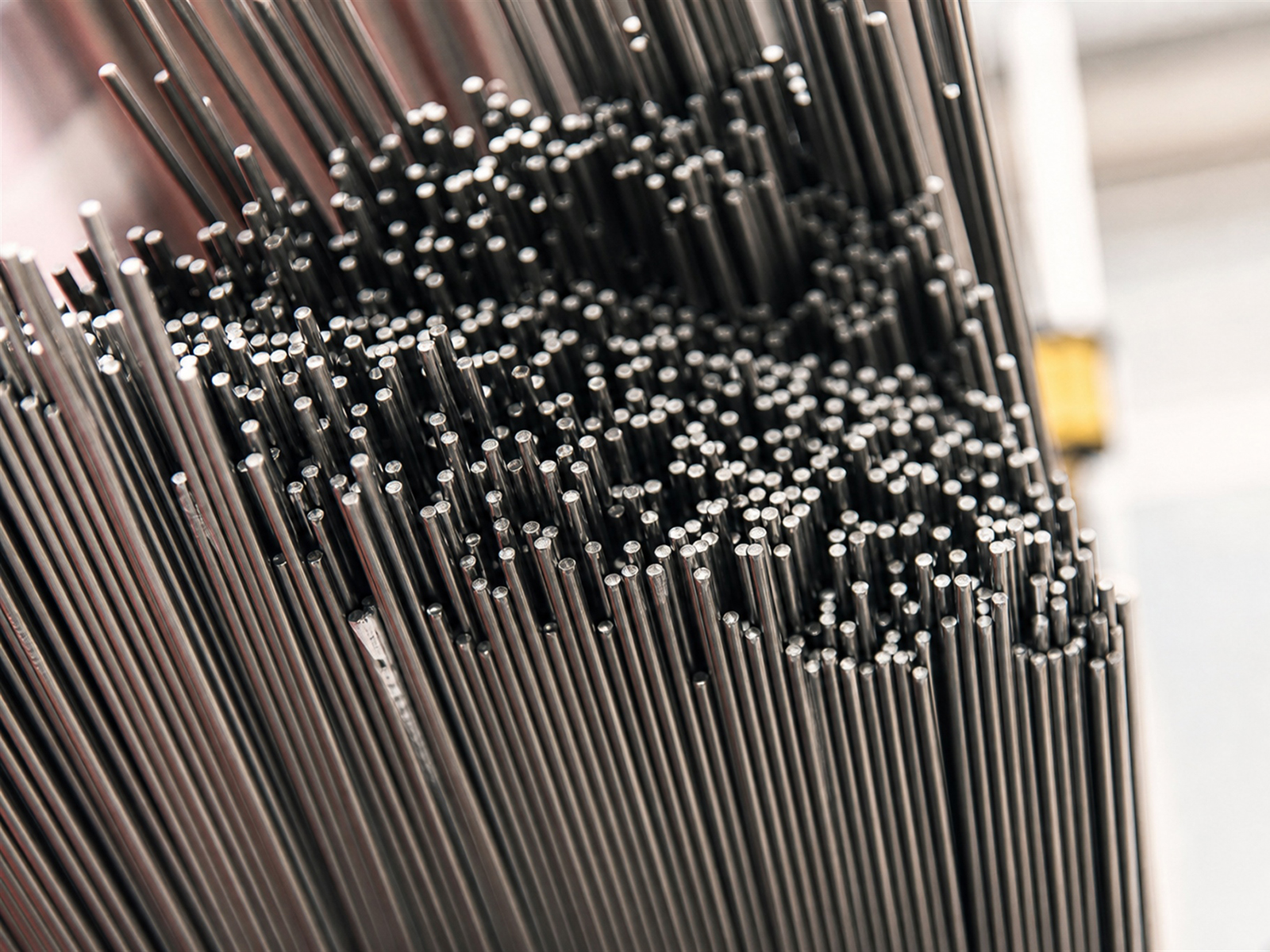

- TB13 Titanium Alloy Rod
TB13 titanium alloy (China GB standard designation equivalent to Ti-5Al-2.5Sn-2Zr-4Mo-4Cr), a high-strength alpha-beta titanium alloy, is specifically engineered for applications requiring exceptional strength, dimensional precision, and customized geometries. As engineering demands grow more stringent in aerospace, medical implant, and precision instrument sectors, off-the-shelf titanium alloys often fail to meet the combined requirements of mechanical performance, manufacturability, and application-specific customization. TB13 Titanium Alloy Rod fills this critical gap by delivering tailored solutions that optimize performance while reducing overall system complexity and cost.
1. Unique Properties of TB13 Titanium Alloy
(1) High Strength with Excellent Fracture Toughness
TB13 titanium alloy achieves tensile strengths of 1100–1250 MPa in the solution-treated and aged condition, surpassing Ti-6Al-4V (Gr5) by approximately 15–20%. Despite this high strength, the alloy maintains fracture toughness (K₁c) of 75–90 MPa√m, ensuring resistance to catastrophic failure under overload conditions. The balanced strength-toughness combination is achieved through the synergistic effect of aluminum (alpha stabilizer), zirconium (neutral strengthening), molybdenum (beta stabilizer), and chromium (beta stabilizer) elements.
(2) Superior Fatigue Resistance
The fatigue limit of TB13 titanium alloy reaches 600–650 MPa (approximately 52–55% of ultimate tensile strength), significantly higher than Ti-6Al-4V at 500–550 MPa. This enhanced fatigue performance is attributed to the fine alpha-beta microstructure produced by controlled thermomechanical processing, which retards crack initiation and slows propagation rates under cyclic loading. For rotating components, spring elements, and structural parts subjected to vibration, TB13 provides extended service life and improved reliability.
(3) Corrosion Resistance Comparable to Commercially Pure Titanium
Unlike many high-strength titanium alloys that sacrifice corrosion resistance for mechanical performance, TB13 maintains excellent corrosion resistance across a wide range of environments. Corrosion rates in seawater, chlorine-containing solutions, and oxidizing acids remain below 0.001 mm/year, matching the performance of Grade 2 commercial purity titanium. This attribute makes TB13 suitable for applications where both strength and corrosion resistance are simultaneously critical.
2. Precision Customization Capabilities
(1) Dimensional Tolerance and Surface Finish
High-precision TB13 titanium alloy rod is manufactured with diameter tolerances of IT6–IT7 (±0.01–0.025 mm for diameters up to 50 mm) and surface roughness Ra ≤0.4 μm. Precision-ground and polished finishes eliminate surface defects that serve as fatigue crack initiation sites, directly enhancing component reliability. Straightness tolerances of 0.3 mm/m ensure uniform performance in precision assemblies where geometric accuracy is critical.
(2) Custom Geometry and Profile Manufacturing
TB13 titanium alloy rod can be customized to non-standard profiles including hexagonal, square, elliptical, and complex contour cross-sections through precision drawing, rolling, and CNC machining. Custom lengths, stepped diameters, threaded sections, and integrated features (such as flanges, grooves, and knurling) are produced to customer drawings, reducing assembly part count and improving system integration.
(3) Heat Treatment and Property Tailoring
TB13 titanium alloy rod is available in multiple temper conditions: annealed (for maximum formability), solution-treated and aged (for peak strength), and stress-relieved (for dimensional stability). Heat treatment parameters (temperature, time, cooling rate) are customized to achieve target mechanical properties for specific applications, ensuring optimal performance without over-specifying material capabilities and incurring unnecessary cost.
3. Application Domains Requiring TB13 Customization
(1) Aerospace Structural Components
TB13 titanium alloy rod is used for aircraft landing gear components, engine mounting brackets, wing spar fittings, and high-load fasteners. The alloy’s high strength enables weight reduction of 15–25% compared to steel alternatives while maintaining required safety factors. Custom precision-ground profiles eliminate secondary machining operations, reducing production time and cost for high-volume aerospace parts.
(2) Medical Implants and Surgical Instruments
TB13 titanium alloy meets biocompatibility requirements for implantable devices and surgical instruments. Its high strength allows thinner, lighter implant components without compromising load-bearing capacity. Custom-shaped TB13 rods are manufactured into orthopedic screws, spinal fixation devices, and dental implant abutments with precise thread profiles and surface finishes that promote osseointegration.
(3) Precision Instrument and Watchmaking Components
The combination of high strength, low density, and corrosion resistance makes TB13 titanium alloy ideal for precision watch cases, crown components, movement bridges, and instrument housings. Custom-diameter rods with mirror-polished surfaces enable high-end watchmakers to produce components that are both aesthetically appealing and mechanically robust, with dimensions accurate to ±0.005 mm.
4. Procurement and Supply Chain Considerations
(1) Material Certification and Traceability
Custom TB13 titanium alloy rod is supplied with EN 10204 3.1 material certificates documenting chemical composition, mechanical properties, heat treatment records, and non-destructive examination results. Full lot traceability from original titanium sponge through final inspection ensures compliance with aerospace, medical, and nuclear quality management system requirements.
(2) Lead Times and Production Capacity
Standard TB13 titanium alloy rod in common diameters (10–50 mm) is maintained in stock with 1–2 week delivery. Custom profiles and specialized heat treatments require 4–8 weeks production lead time. Annual production capacity exceeds 5,000 tons, supporting both prototype orders and high-volume production runs with consistent quality.
Conclusion
TB13 titanium alloy rod represents the intersection of high performance and customization capability, delivering mechanical properties that exceed conventional titanium alloys while offering the dimensional precision and profile flexibility demanded by advanced engineering applications. Projects requiring the optimal balance of strength, fatigue resistance, corrosion immunity, and geometric accuracy should specify customized TB13 titanium alloy rod as the material of choice—ensuring that every component performs exactly as designed under real-world operating conditions.
FAQ
Q1: How does TB13 titanium alloy compare to Ti-10V-2Fe-3Al for high-strength applications?
Both are high-strength beta titanium alloys. TB13 offers slightly higher tensile strength (1250 MPa vs. 1150 MPa) and better corrosion resistance, while Ti-10V-2Fe-3Al provides superior formability and lower cost. Selection depends on whether maximum strength or maximum formability is the primary design driver.
Q2: Can TB13 titanium alloy be easily machined?
TB13 titanium alloy is moderately difficult to machine due to its high strength and low thermal conductivity. Carbide tooling (grade K10–K20), high cutting fluids flow rates, and optimized cutting parameters (speeds of 30–60 m/min) are recommended. Proper machining practices produce excellent surface finishes and tight tolerances without excessive tool wear.
Q3: What is the minimum order quantity for customized TB13 titanium alloy rod?
Minimum order quantities start at 50 kg for standard diameters and 200 kg for custom profiles. Prototype and sample orders as small as 5 kg are accepted for evaluation purposes, with full material certification provided for all shipments.
Contact Titanium Valley
Baoji Titanium Valley Titanium Nickel Zirconium Material Processing Co., Ltd. manufactures customized TB13 titanium alloy rod with precision dimensional control, EN 10204 3.1 certification, and full material traceability. Custom profiles, heat treatments, and surface finishes available. Contact us for technical data and quotations:
References
Liu, J., et al. Mechanical Properties of TB13 Titanium Alloy for Aerospace Applications [J]. Materials Science and Engineering A, 2021, 808: 140912.
ASM International. Titanium Alloy Database [M]. ASM Handbook Volume 4, 2020.
GB/T 3620.1-2016. Titanium and Titanium-Alloyed Forgings and Foring Stock [S]. Standardization Administration of China, 2016.
