Gr5 Titanium Foil Performance in Extreme Environments: Which Grade Delivers the Best Results?

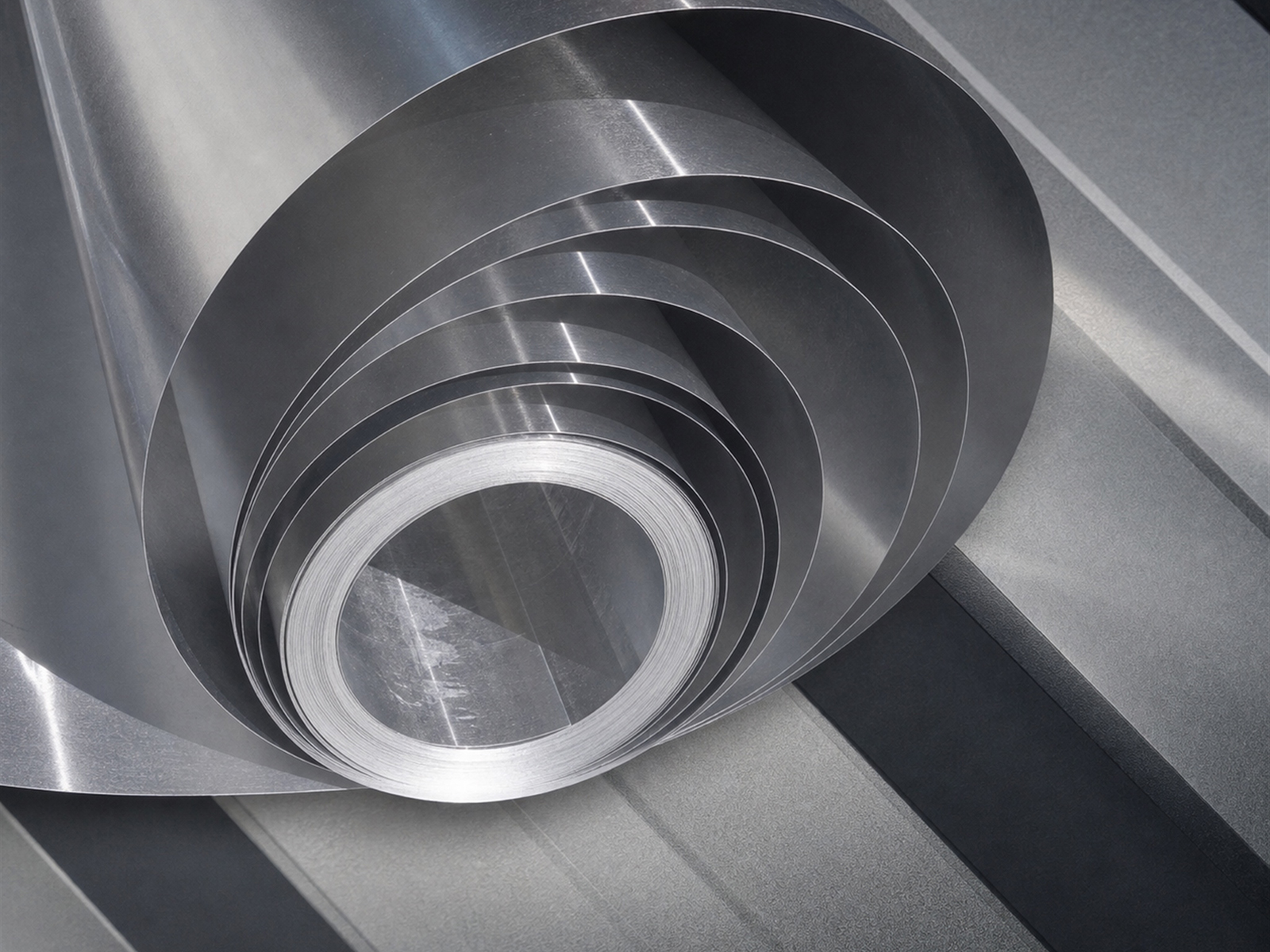

- Gr5 Titanium Foil
Gr5 Titanium Foil Gr5 (Ti-6Al-4V) titanium foil represents the pinnacle of commercially available titanium foil performance, combining the strength of alpha-beta titanium alloy with excellent corrosion resistance and temperature capability. This article comprehensively evaluates the performance of Gr5 titanium foil under extreme environmental conditions including high temperature, cryogenic temperatures, corrosive media, and high radiation environments.
1. High-Temperature Performance
(1) Mechanical Properties at Elevated Temperatures
Gr5 titanium foil maintains useful mechanical properties up to 350-400 degrees C. At 300 degrees C, tensile strength remains at approximately 70% of room temperature values (600 MPa vs 850 MPa). The alloy exhibits excellent creep resistance up to 350 degrees C, with steady-state creep rates below 10^-8 /s under 200 MPa stress.
| Temperature | Tensile Strength | Yield Strength | Elongation |
|---|---|---|---|
| Room Temp (25 C) | 850 MPa | 780 MPa | 10-15% |
| 200 C | 750 MPa | 680 MPa | 12-18% |
| 300 C | 600 MPa | 520 MPa | 15-20% |
| 350 C | 500 MPa | 420 MPa | 18-25% |
(2) Oxidation Resistance at High Temperature
Gr5 titanium foil forms a stable Al2O3-containing oxide scale at temperatures up to 400 degrees C, providing effective protection against further oxidation. Weight gain measurements in air at 350 degrees C show oxidation rates below 0.1 mg/cm^2-h, significantly lower than uncoated titanium alloys.
2. Cryogenic Performance
Unlike many metals that become brittle at cryogenic temperatures, Gr5 titanium foil exhibits improved strength and maintained ductility at temperatures down to -196 degrees C (liquid nitrogen). Tensile strength increases to approximately 1100 MPa at liquid helium temperatures (4 K), while elongation remains above 8%. This makes Gr5 ideal for cryogenic tank components, superconducting magnet structures, and space applications.
3. Corrosive Environment Performance
(1) Seawater and Chloride Environments
Gr5 titanium foil demonstrates outstanding corrosion resistance in seawater, brine, and chloride-containing solutions. Corrosion rates below 0.001 mm/year are achieved in flowing seawater at velocities up to 15 m/s, with no susceptibility to pitting, crevice corrosion, or stress corrosion cracking.
(2) Acid and Alkali Environments
Gr5 titanium foil exhibits excellent resistance to nitric acid, organic acids, and alkaline solutions. In 10% HNO3 at boiling temperature, corrosion rates remain below 0.01 mm/year. Performance in sulfuric and hydrochloric acids is limited by the passive film breakdown at high concentrations and temperatures.
4. Radiation Environment Performance
Gr5 titanium foil shows minimal property degradation under neutron and gamma radiation exposure up to 100 dpa (displacements per atom). Radiation-induced hardening is modest (yield strength increase of 10-15% at 50 dpa), and ductility loss is limited to 3-5 percentage points. This makes Gr5 suitable for nuclear reactor components and space radiation shielding applications.
5. Fabrication and Surface Engineering
Gr5 titanium foil can be fabricated using standard sheet metal techniques with appropriate parameter adjustments. Surface treatments including anodization, nitriding, and PVD coating further enhance performance in specific extreme environments.
Conclusion
Gr5 titanium foil delivers exceptional performance across a wide range of extreme environments, from cryogenic temperatures to 400 degrees C, in corrosive media, and under radiation exposure. Its combination of high strength, corrosion resistance, and temperature capability makes it the premier titanium foil choice for demanding applications.
FAQ
Q1: What is the maximum service temperature for Gr5 titanium foil?
Continuous service up to 350 degrees C; intermittent exposure to 400 degrees C is acceptable.
Q2: How does Gr5 foil compare to Gr1/Gr2 at cryogenic temperatures?
Gr5 shows higher strength at cryogenic temperatures than Gr1/Gr2, while maintaining comparable ductility.
Q3: Can Gr5 titanium foil be welded?
Yes, using TIG, laser, or electron beam welding with proper inert gas shielding.
Contact Us
Baoji Titanium Valley Titanium Nickel Zirconium Material Processing Co., Ltd. supplies Gr5 titanium foil. Contact us at sales@titaniumvalleys.com.
References
[1] ASM Handbook Volume 2: Properties and Selection[M]. ASM International, 2023.
[2] ASTM B265/B265M-23. Standard Specification for Titanium and Titanium Alloy Sheet and Plate.
[3] Luetjering G., Williams J.C. Titanium[M]. Springer, 2007.
