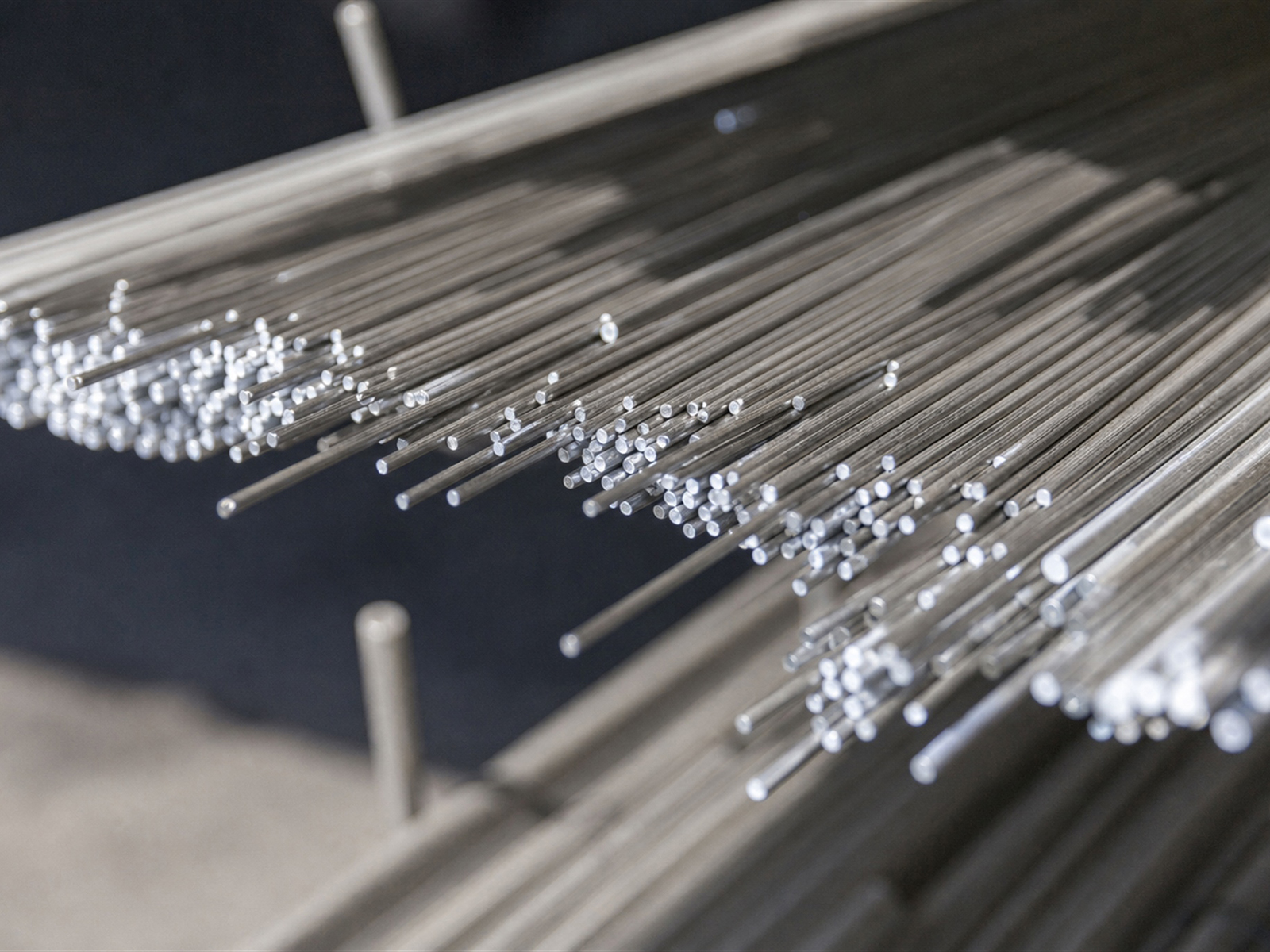

What Should You Know About Recommendations for Cutting Parameters to Improve Turning Efficiency of Gr5 Titanium Rods?

Ti-6Al-4V titanium alloy rod (TC4) is widely used in aerospace, medical equipment and precision manufacturing due to its high strength and lightweight properties. However, its low thermal conductivity, high chemical activity and strength retention make turning processing face challenges such as rapid tool wear, concentrated cutting heat, and difficult to control surface quality. Optimizing cutting parameters is the key path to cracking the efficiency bottleneck. It is recommended to use medium and low cutting speeds (40-80 m/min) with moderate feeds (0.1-0.3 mm/r), and control the cutting depth at 1-3 mm. At the same time, use coated carbide tools, combined with a high-pressure cooling system, which can significantly reduce tool temperature rise, extend service life, improve surface finish, and achieve the optimal balance between processing efficiency and cost.

1. What Should You Know About Core Difficulties and Parameter Influencing Mechanisms in Turning Ti-6Al-4V Titanium Alloy Rods?

(1) Why Is the Problem of Temperature Rise in the Cutting Zone Caused by Low Thermal Conductivity Important?

The thermal conductivity of Ti-6Al-4V titanium alloy is only 6.7 W/(m·K), which is about 1/4 of No. 45 steel. During the cutting process, more than 80% of the heat cannot be quickly dissipated through the workpiece or chips, and is concentrated in the tool tip contact area, and the temperature can rise to 800-1000℃. High temperature directly softens the tool matrix, accelerates bonding wear and crater formation, and shortens tool life by more than 50%.

(2) Why Is Tool Adhesion Caused by High Chemical Activity Important?

Titanium reacts chemically with the tool material at high temperatures, and the bottom layer of the chip is strongly bonded to the rake face, forming a built-up edge. When the built-up edge falls off, it takes away the tool particles, causing chipping or groove wear. This phenomenon is particularly prominent when the cutting speed exceeds 100 m/min, seriously affecting the processing stability.

(3) Why Is Process System Deformation Caused by Low Elastic Modulus Important?

The elastic modulus of Ti-6Al-4V titanium alloy is only 110 GPa, less than half that of steel. Under the action of cutting force, slender rods are prone to bending deformation and vibration, resulting in poor dimensional accuracy and obvious surface ripples. The process system with insufficient rigidity needs to be compensated through parameter adjustment, otherwise the pass rate will drop significantly.

2. What Should You Know About Quantitative Relationship Between Cutting Speed and Tool Life?

(1) What Should You Know About Critical Threshold Analysis of Speed Range?

In the rough machining stage, the cutting speed is recommended to be controlled at 40-60 m/min. The cutting temperature is maintained at 600-700℃ within this range, which not only ensures the material removal rate, but also avoids overheating failure of the tool. Finishing can be increased to 60-80 m/min, and a surface roughness of Ra 0.8-1.6 um can be obtained with a small depth of cut (0.5-1 mm). After exceeding 90 m/min, the tool life decreases exponentially and the economy deteriorates sharply. It should be noted that the cutting temperature range is related to the heat resistance of the tool material. The specific parameters will be analyzed below.

(2) What Should You Know About Speed ​​adaptation Strategies for Different Tool Materials?

The carbide YG8 and TiAlN-coated carbide in the table overlap in the 40-60 m/min and 60-80 m/min ranges. The actual selection must be based on the machining allowance and surface requirements: YG8 is preferred when the rough machining allowance is greater than 2 mm, and TiAlN-coated carbide is used when the semi-finishing allowance is less than 1 mm.

(3) What Should You Know About Speed-temperature-wear Coupling Model?

Experimental data show that when the cutting speed increases from 50 m/min to 80 m/min, the tool temperature increases by about 150℃, and the flank wear rate increases by 2.3 times. It should be noted that this temperature rise is based on the measurement results of an initial temperature of about 650℃, and the actual high temperature range is still in the range of 600-800℃. It is recommended to use infrared temperature measurement for real-time monitoring. When the temperature exceeds 750℃, immediately slow down or replace the tool to avoid sudden chipping and scrapping of the workpiece.

3. What Should You Know About Collaborative Optimization Scheme of Feed Rate and Cutting Depth?

(1) What Should You Know About the Control Effect of Feed Amount on Chip Shape?

The feed directly determines the chip thickness and chip removal effect. Too small a feed rate (<0.08 mm/r) leads to excessive friction between the cutting edge and the workpiece, resulting in a work-hardened layer, and subsequent tool cutting resistance increases. It is recommended to use 0.2-0.3 mm/r for roughing and reduce it to 0.1-0.15 mm/r for finishing to ensure that the chips are C-shaped or short spiral for easy discharge and do not wrap around the tool.

(2) What Should You Know About Layered Decreasing Strategy for Cutting Depth?

Although large depth of cut machining improves efficiency, the cutting force increases exponentially, and the risk of deformation of slender parts increases sharply. It is recommended to use multiple passes: the first cut depth is 2-3 mm to remove the main allowance, and each subsequent cut is reduced by 0.5-1 mm, leaving a 0.3-0.5 mm allowance for final finishing. This method can reduce single cutting force by more than 30% and significantly improve dimensional consistency. It should be noted that when the diameter of the workpiece is less than 30 mm, it is recommended to control the first cutting depth within 2 mm.

(3) Why Is Application of Empirical Formulas for Parameter Matching Important?

Modify the model according to Taylor’s tool life formula: VT^n × f^m × ap^k = C (where V is the cutting speed, T is the life, f is the feed, ap is the depth of cut, and C is a constant). For Ti-6Al-4V titanium rod, n≈0.25, m≈0.35, k≈0.18. The value range of this index is based on experimental data fitting in literature [1], and the constant C needs to be calibrated through cutting tests based on the actual tool material and cooling conditions. This formula can quickly calculate the optimal parameter combination to balance efficiency and cost.

4. What Should You Know About Key Configurations of Tool Geometry Parameters and Cooling Methods?

(1) What Should You Know About Precise Design of Front and Rear Corners?

Ti-6Al-4V titanium alloy processing requires a larger rake angle (8-12°) to reduce cutting deformation, cutting force and cutting heat. The clearance angle is set to 6-8° to ensure the strength of the tool and avoid excessive friction on the flank surface. It is recommended that the edge inclination angle be a positive value (3-5°) to guide the chip flow away from the machined surface and prevent scratches.

(2) How Should Selection Logic of Tool Nose Arc Radius?

It should be noted that the surface roughness data in the table are measured based on the conditions of feed rate 0.1-0.15 mm/r and cutting speed 60-80 m/min. Simply increasing the tool tip arc radius without adjusting the feed amount will have limited roughness improvement effect.

(3) What Should You Know About Thermal Management Effectiveness of High-Pressure Cooling Systems?

It is difficult for ordinary pouring cooling to penetrate into the cutting area. It is recommended to use high-pressure coolant with a pressure of ≥ 7 MPa to directly reach the cutting interface through the inner hole of the tool. The coolant should be emulsion or synthetic cutting fluid, with a concentration of 8-12% and a flow rate of ≥ 15 L/min. This method can reduce the temperature of the cutting zone by 200-300℃, increase the tool life by 1.5-2 times, and significantly improve the surface quality. It should be added that the temperature of the high-temperature cutting zone (800-1000℃) can still drop to 500-800℃ after high-pressure cooling. At this time, it is necessary to confirm that the selected tool material still maintains sufficient hardness within this temperature range (for example, the hardness of coated carbide begins to decrease above 600℃).

(4) What Should You Know About Structural Optimization of Chip Breaker?

Ti-6Al-4V titanium rods are prone to produce long strip-shaped chips, which can wrap around tools or workpieces and cause safety hazards. The insert must be equipped with a special chip breaker with a groove width of 0.3-0.5 mm, a depth of 0.15-0.25 mm, and a chamfer of 30-45°. A reasonable chip breaker can control the chip length to 50-80 mm and automatically fall off, reducing the frequency of shutdown and cleaning.

5. What Should You Know About Process System Rigidity and Vibration Suppression Measures?

(1) What Should You Know About Rigidity Strengthening Solution for Clamping Method?

Slender Ti-6Al-4V titanium rods (length-to-diameter ratio >5) need to be auxiliary supported by a tool rest or a center frame to reduce the overhang. The clamping force of the three-jaw chuck should be evenly distributed to avoid deformation caused by local overtightening. Hydraulic clamps or expansion sleeve clamping can be used for precision machining. The clamping force fluctuation is <5% to ensure stable workpiece position during processing.

(2) What Should You Know About Control Standards for Tool Overhang Length?

The overhang of the tool bar should be shortened as much as possible, generally no more than 2.5 times the diameter of the tool bar. When the overhang is too long, the tool stiffness decreases, cutting vibration intensifies, and chatter marks appear on the surface. Vibration-absorbing tool holders or counterweighted tool holders can be selected to increase the natural frequency by 20-30%, effectively suppressing resonance.

(3) What Should You Know About Dynamic Adjustment Strategy for Cutting Parameters?

To monitor vibration signals and cutting force changes in real time during the machining process, a piezoelectric acceleration sensor (installed on the tool holder near the tool tip) or a force measuring tool holder (such as the Kistler force measuring system) can be used. When the amplitude exceeds the preset threshold, the control system automatically reduces the cutting speed or feed by 10-15%, and resumes after the system stabilizes. This intelligent control method can avoid tool damage or workpiece scrapping caused by sudden vibration, and the pass rate increases to more than 98%.

6. What Should You Know About Parameter Optimization Examples Under Different Working Conditions?

(1) What Should You Know About High-precision Machining of Aerospace Structural Parts?

An aerospace engine connecting rod uses a φ80 mm Ti-6Al-4V titanium rod, with a tolerance requirement of ± 0.02 mm and a surface roughness Ra≤ 0.8 um. Process parameters: TiAlN coated carbide tool, cutting speed 65 m/min, feed rate 0.12 mm/r, cutting depth 0.5 mm, high pressure cooling 8 MPa. The processing cycle is shortened by 35%, tool costs are reduced by 28%, and the first pass rate reaches 99.2%.

(2) What Should You Know About Surface Quality Control of Medical Implants?

φ12 mm Ti-6Al-4V titanium rods are used for orthopedic screw processing, and it is necessary to ensure that there are no micro-cracks and residual tensile stress on the surface. A CBN tool is used, with a cutting speed of 90 m/min, a feed of 0.08 mm/r, a cutting depth of 0.3 mm, and minimum quantity lubrication (MQL) cooling. The surface residual stress changes from tensile stress of 120 MPa to compressive stress of -80 MPa, and the fatigue life is increased by 40%.

(3) What Should You Know About Cost-benefit Balance for Series Production?

A precision machinery factory has a monthly output of 5, 000 pieces of φ50 mm Ti-6Al-4V titanium rods and shafts. Through parameter optimization (the cutting speed was increased to 75 m/min, a multi-edge end mill was used, and the tool path was optimized), the processing time of a single piece was reduced from 28 minutes to 19 minutes, the tool consumption was reduced by 42%, the overall cost was reduced by about 33%, and the annual benefit increased by more than 1.5 million yuan. The above data are based on the factory’s 2023 production report statistics. The assumptions are: equipment utilization rate is 85%, tool unit price is 200 yuan/piece, and labor cost is 80 yuan/hour.

7. What Is the Conclusion?

To improve the turning efficiency of Ti-6Al-4V titanium rods, it is necessary to systematically control the cutting parameters: the speed is controlled in the range of 40-80 m/min, the feed rate is 0.1-0.3 mm/r, the depth of cut is reduced in layers from 1-3 mm, and coated carbide tools and high-pressure cooling are used. Strengthening the rigidity of the process system and optimizing the tool geometric parameters can shorten the processing cycle by more than 30%, reduce tool costs by 25-40%, improve surface quality and dimensional accuracy simultaneously, and meet the stringent requirements of high-end fields such as aerospace medicine.

FAQ

Q1: Why does the tool wear so quickly when turning Ti-6Al-4V titanium rod?

The main reason is that the low thermal conductivity of titanium alloy causes cutting heat to be concentrated on the tool tip, and the tool material softens and fails when the temperature exceeds 800℃. At the same time, the high chemical activity of titanium causes a bonding reaction with the cutting tool at high temperatures, accelerating wear. It is recommended to use coated carbide tools with high-pressure cooling, which can extend tool life by 1.5-2 times.

Q2: How to avoid vibration and deformation when processing slender Ti-6Al-4V titanium rods?

It is necessary to use a tool rest or a center frame for auxiliary support, and reduce the overhang to within 2.5 times the rod diameter. The cutting parameters are medium and low speed (50-65 m/min), small depth of cut (1-2 mm) and moderate feed (0.15-0.25 mm/r) to reduce cutting force. The use of vibration-damping tool holders can suppress resonance and ensure dimensional accuracy and surface quality.

Q3: How should the parameters of rough machining and finishing of Ti-6Al-4V titanium rod be distinguished?

Roughing gives priority to efficiency, with a cutting speed of 40-60 m/min, a feed of 0.2-0.3 mm/r, a depth of cut of 2-3 mm, and rapid removal of allowances. Finishing focuses on quality, with the speed increased to 60-80 m/min, the feed reduced to 0.1-0.15 mm/r, the depth of cut 0.3-0.5 mm, and a surface finish of Ra 0.8-1.6 um obtained. In terms of tool selection, finishing requires a sharper edge and a larger tool tip arc radius.

8. Why Is Industry Applications and Technical Support Important?

Baoji Titanium Nickel and Zirconium Materials Processing Co., Ltd. specializes in the production of high-quality Ti-6Al-4V titanium alloy rods. It is equipped with an Italian Danieli rolling production line with an annual production capacity of over 20, 000 tons. The products comply with ASTM B348 and AMS 4928 international standards (excluding Chinese standards). We provide customized size, surface treatment and batch supply services to help customers in aerospace, medical equipment, precision manufacturing and other industries improve processing efficiency. For more technical parameters or to obtain samples, please contact: sales@titaniumvalleys.com
