Why Gr2 Titanium Bar Is Called the All-Rounder Foundation of the Titanium Industry: Which Grade Delivers the Best Balance?

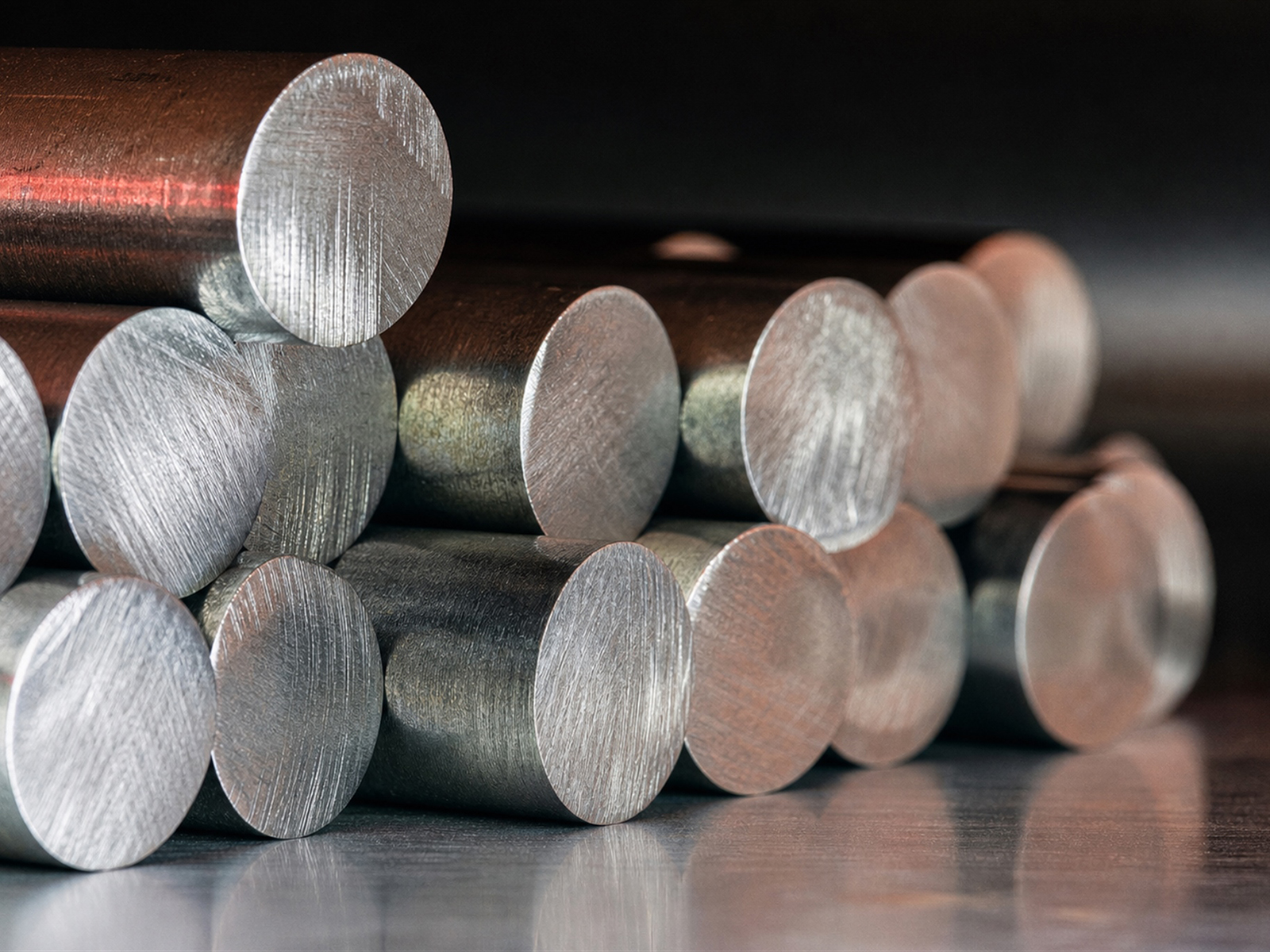

- Gr2 Titanium Bar
Gr2 Titanium Bar , with its optimal balance of mechanical strength, corrosion resistance, and fabricability, has earned the reputation as the all-round foundation material of the titanium industry. Used across aerospace, chemical processing, marine engineering, medical devices, and architectural applications, Gr2 titanium bar represents the workhorse of commercially pure titanium products. This article explores why Gr2 titanium bar is considered the titanium industry versatile foundation and evaluates its performance across diverse application domains.
1. Gr2 Titanium Bar: Material Characteristics
(1) Chemical Composition and Microstructure
Gr2 titanium bar contains >= 99.2% titanium with oxygen content of 0.20-0.25%, iron content of 0.20-0.35%, and carbon content <= 0.08%. The slightly elevated oxygen level compared to Gr1 provides additional solid-solution strengthening while maintaining excellent ductility and corrosion resistance.
| Property | Gr1 | Gr2 | Gr5 (Ti-6Al-4V) |
|---|---|---|---|
| Tensile Strength (MPa) | >= 240 | >= 275 | >= 895 |
| Yield Strength (MPa) | >= 170 | >= 205 | >= 828 |
| Elongation (%) | >= 25 | >= 20 | >= 10 |
| Corrosion Resistance | Excellent | Excellent | Very Good |
| Formability | Superior | Good | Moderate |
(2) Mechanical Property Balance
Gr2 titanium bar achieves tensile strength of 275-400 MPa and yield strength of 205-310 MPa, providing a significant strength increase over Gr1 while maintaining ductility adequate for most forming operations. The modulus of elasticity (~110 GPa) and density (4.51 g/cm^3) are identical to other CP titanium grades, ensuring consistent weight and stiffness characteristics.
2. Corrosion Resistance Performance
Gr2 titanium bar exhibits exceptional corrosion resistance across a broad spectrum of environments including seawater, chlorine-containing solutions, nitric acid, organic acids, and alkaline solutions. Corrosion rates below 0.001 mm/year are achieved in most industrial environments, making Gr2 ideal for chemical processing, marine, and architectural applications.
3. Fabrication and Processing Capabilities
Gr2 titanium bar can be machined, formed, welded, and heat treated using standard titanium processing techniques. Cutting speeds of 20-40 m/min with carbide tooling, cold forming with bend radii of 2-3x material thickness, and fusion welding with argon shielding are all routinely practiced.
4. Key Industrial Applications
(1) Chemical Processing
Gr2 titanium bar is used for reactor shafts, pump components, heat exchanger tubing, and piping systems in chemical plants processing corrosive media.
(2) Marine and Offshore Engineering
Gr2 titanium bar serves as propeller shafts, rudder stocks, mooring hardware, and offshore platform structural members where seawater corrosion resistance and mechanical strength are simultaneously required.
(3) Medical and Dental Implants
Gr2 titanium bar is employed for orthopedic implant stems, dental implant abutments, and surgical instrument components requiring biocompatibility and adequate strength.
(4) Architectural and Structural
Gr2 titanium bar is used for architectural cladding supports, bridge components, and structural fasteners where long-term weathering resistance and aesthetic appeal are important.
5. Economic Considerations
Gr2 titanium bar offers the best value proposition among commercially pure titanium grades, providing 20-30% higher strength than Gr1 at only 5-10% higher cost per kg. This cost-performance balance makes Gr2 the default choice for most titanium applications where extreme strength is not required.
Conclusion
Gr2 titanium bar earns its reputation as the titanium industry all-rounder through its optimal balance of strength, corrosion resistance, formability, and cost-effectiveness. Its versatility across aerospace, chemical, marine, medical, and architectural applications confirms its status as the foundational material of the titanium industry.
FAQ
Q1: When should I choose Gr2 over Gr1 titanium bar?
Choose Gr2 when higher strength is needed without sacrificing corrosion resistance; Gr1 is preferred when maximum formability is required.
Q2: Can Gr2 titanium bar be welded?
Yes, using TIG, MIG, or laser welding with proper inert gas shielding.
Q3: What is the maximum service temperature for Gr2 titanium bar?
Continuous service up to 300 degrees C; intermittent exposure to 400 degrees C is acceptable.
Contact Us
Baoji Titanium Valley Titanium Nickel Zirconium Material Processing Co., Ltd. supplies Gr2 titanium bar. Contact us at sales@titaniumvalleys.com.
References
[1] ASM Handbook Volume 2: Properties and Selection[M]. ASM International, 2023.
[2] ASTM B348/B348M-23. Standard Specification for Titanium and Titanium Alloy Bars and Billets.
[3] Luetjering G., Williams J.C. Titanium[M]. Springer, 2007.
