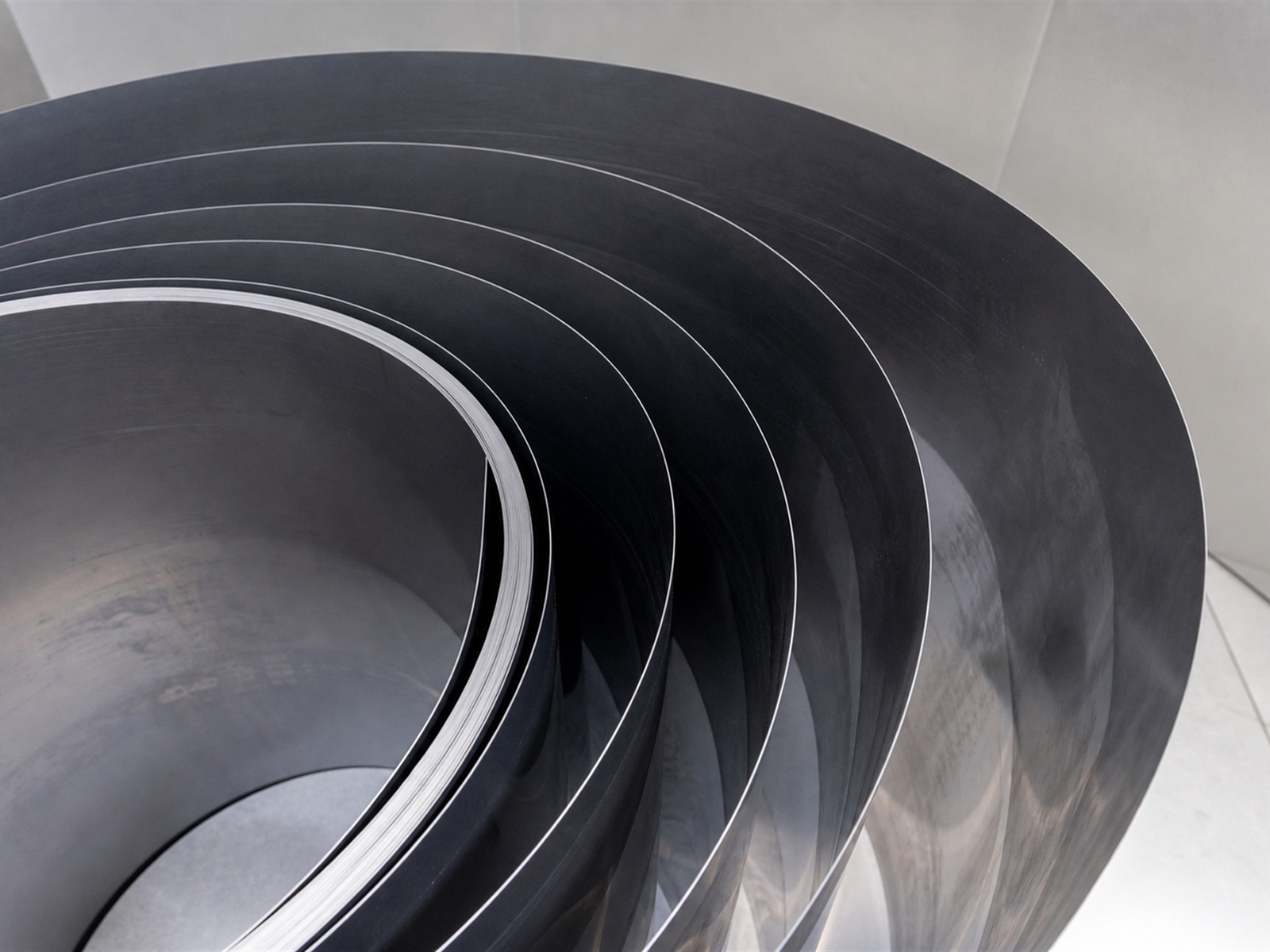

How Should Ti-15V-3Al-3Cr-3Sn Titanium Foil Purchasing Specification Guide?

When purchasing Ti-15V-3Al-3Cr-3Sn titanium foil in the high-end manufacturing field, purchasing decision makers need to comprehensively evaluate material characteristics, process capabilities and supplier qualifications. This near-beta titanium alloy foil has become a key material in aerospace, precision electronics and other fields due to its unique “forming first and then strengthening” process characteristics. This guide systematically analyzes the key points of procurement from technical parameters, production processes, quality control to application scenarios, helping you establish a scientific procurement decision-making framework to ensure that the selected materials can not only meet complex forming requirements, but also meet the final use strength standards, avoiding project delays and cost waste caused by improper material selection.

1. What Should You Know About Interpretation of Core Technical Parameters of Ti-15V-3Al-3Cr-3Sn Titanium Foil?

(1) What Should You Know About Alloy Systems and Material Classification?

Ti-15V-3Al-3Cr-3Sn is a near-beta titanium alloy whose composition design achieves a delicate balance between beta-stabilizing elements and alpha-stabilizing elements. Compared with the traditional α + β type Gr5 titanium alloy, this material has more β phase structure in the solid solution treatment state, which makes the crystal structure have higher symmetry, thus giving the material excellent cold working plasticity. 15% of vanadium in the alloy serves as the main β-stabilizing element, and cooperates with the chromium element to significantly reduce the phase transformation temperature; while 3% of aluminum and tin serve as α-stabilizing elements to ensure that fine and dispersed α-precipitate phases can be formed after aging treatment, which is the microscopic mechanism for strength improvement. This carefully designed component system makes the material density only 4.51 g/cm³, which is much lower than stainless steel, but it can achieve a significant jump in strength through heat treatment.

(2) What Should You Know About Key Physical Performance Indicators?

The non-magnetic nature of the material (magnetic permeability close to 1) makes it ideal for precision instrumentation and electromagnetic shielding applications, without generating magnetic field interference in sensitive electronic environments. The melting point of 1668℃ gives it good high-temperature stability. Although the service temperature is usually not close to the melting point, this characteristic ensures structural stability during heat treatment. What is worth paying attention to is the specific strength advantage of the material: in the solution treated state, the yield strength is usually in the range of 600-800 MPa, and can be increased to 1100-1300 MPa after aging treatment. This strength level, combined with the low density characteristics, makes the specific strength reach 1.5-2 times that of ordinary carbon steel (such as Q235). In terms of corrosion resistance, the surface of the material can spontaneously form a dense TiO2 passivation film, which performs well in the ocean atmosphere and most acid and alkali environments, and has a service life far longer than that of ordinary stainless steel.

(3) What Should You Know About Standard Specifications and Customization Capabilities?

The standard thickness range of 0.02-1.0 mm covers application requirements from ultra-thin to conventional thickness. The stable supply capability of 0.02 mm ultra-thin specifications is an important indicator for examining the technical strength of suppliers. The span width of 15-680 mm is suitable for different equipment and application scenarios. In particular, the production of 680 mm wide products is extremely difficult and requires the support of high-precision rolling mills and tension control systems. The surface status is divided into bright surface and matte surface: the bright surface has been precision polished with a surface roughness Ra≤ 0.4 um, which is suitable for electronic packaging that has strict requirements on appearance and cleanliness; the matte surface retains the rolling texture, has better coating adhesion, and is suitable for subsequent surface modification treatments. The customized thickness can be up to 0.005 mm. This ultra-thin specification is mainly used in microelectronic lead frames and optical mirror substrates, but it is necessary to evaluate whether the supplier has ultra-precision rolling and online thickness measurement capabilities.

Table 1: Comparison between Ti-15V-3Al-3Cr-3Sn and other titanium foil materials

2. What Should You Know About Production Process Capabilities and Quality Assurance System?

(1) What Should You Know About Full-process Manufacturing Process Chain?

Vacuum melting is the source of quality. Vacuum consumable arc furnace (VAR) is used for three remeltings to ensure the uniformity and purity of the alloy components. Controlling the oxygen content below 0.13% is a key indicator. The forging stage requires high-temperature forging in the β phase region to break up the as-cast structure and establish a good initial structure for subsequent processing. Hot rolling billet rolling is used to roll the forged billet into an intermediate billet of 3-5 mm. The key to this stage is temperature control and distribution of deformation in passes to avoid edge cracks and surface defects. Multi-pass precision cold rolling is the core link to form ultra-thin specifications. A 20-roll mill is used to perform 20-30 passes of cumulative deformation. The total deformation exceeds 98%. The reduction, tension, and rolling speed of each pass need to be accurately controlled. Ultrasonic cleaning adopts a multi-tank step-by-step cleaning process with a surface dyne value ≥ 40 mN/m (i.e. 40 dyne/cm) to ensure that no oxidation color difference occurs on the surface during subsequent heat treatment.

(2) What Should You Know About Key Equipment Technical Parameters?

The configuration level of the 750 mm 20-roll precision rolling mill directly determines the upper limit of product quality. The maximum rolling force of 3500 kN combined with the hydraulic automatic thickness control (AGC) system can control the thickness tolerance within ± 0.005 mm; the maximum linear speed of 400 m/min means high production efficiency, but more importantly, the wide speed adjustment range allows ultra-thin materials to be rolled stably at a suitable speed. The continuous annealing line adopts 7-section independent temperature control. The precise control of the heating zone-heat preservation zone-cooling zone achieves uniformity of the structure. The temperature accuracy of ± 2℃ ensures consistent performance at all locations of wide-width materials. The maximum heating capacity of 1100℃ meets the needs of solid solution treatment, and the rapid cooling system (cooling rate up to 50℃/s) suppresses the β → α phase transformation and retains the highly plastic β phase structure. The smoothing unit is equipped with the combined functions of multi-roller straightening and stretch straightening, which can effectively eliminate the internal stress of the material, reduce the residual stress by more than 60%, and ensure the dimensional stability of subsequent processing.

(3) What Should You Know About Quality Control Key Points?

Thickness uniformity detection uses a laser thickness gauge to scan online with full coverage, and the data collection frequency reaches 1000 Hz. Any small fluctuations can be captured and fed back to the adjustment of rolling parameters. Surface quality inspection uses a high-resolution CCD visual inspection system, which can identify surface defects of 0.05 mm, including scratches, indentations, oxidation spots, etc., and the automatic rejection rate of defective products is >99.5%. Mechanical property testing is performed in accordance with AMS 4983/4984 standards (the current versions are AMS 4983F and AMS 4984F). Tensile testing, hardness testing, and bending testing constitute a complete evaluation system, with special attention to the performance differences under different heat treatment states. The composition analysis uses a combination of spectrometer and chemical analysis to ensure that the content of each element is within the standard range, and the vanadium content deviation is controlled within ± 0.3%. Metallographic structure inspection evaluates the grain size, phase composition and precipitated phase distribution. β phase content and grain size are key indicators of solution treated materials.

Table 2: Core technical parameters of production equipment

3. Why Is Material Performance Advantages and Differentiated Features Important?

(1) What Should You Know About “Solid Solution-aging” Two-state Control Mechanism?

This is the most distinctive characteristic of Ti-15V-3Al-3Cr-3Sn. The solution-treated material is rapidly cooled after being insulated at 850-900℃. The structure is mainly β single phase. At this time, the elongation can reach 20-30%. Complex forming operations such as deep drawing, bending, and spinning can be performed, and the forming radius can be as small as 2 times the plate thickness without cracking. After the forming is completed, through aging treatment at 450-550℃, a large amount of nano-scale α phase is precipitated in the β phase. Through the precipitation strengthening and phase boundary strengthening mechanism, the yield strength is increased by 50-80%, while maintaining an elongation of more than 10%. This “soft first and then hard” characteristic completely changes the traditional contradiction of “high strength must be difficult to form”, making it possible to integrate complex thin-walled parts and reducing the weight increase and reliability risks caused by welding assembly.

(2) What Should You Know About Dimensional Stability and Flatness Control?

The flatness of ultra-thin and wide-width materials is the key to practicality. Inferior products often suffer from problems such as horizontal waves and edge warping, causing the automation equipment to be unable to feed materials normally. Through the multi-point pressing of the 20-roll mill and the tension-bending compound straightening of the precision smoothing machine, the flatness of the material can be controlled to I≤ 3 (wave height ≤ 3 mm per meter), and the transverse thickness difference of the wide-width material is ≤ 0.01 mm. This dimensional stability is crucial in automated stamping and lamination processes in the electronics industry and can reduce equipment downtime and debugging time by 70%. The effective control of residual stress also avoids the deformation and rebound of materials after cutting and stamping, and improves the assembly accuracy and consistency of parts.

(3) What Should You Know About Surface Cleanliness and Functionalization?

The aerospace and medical fields have strict restrictions on material surface contaminants, and grease residues, metal particles, and oxides may become sources of failure. Ultrasonic cleaning combined with a multi-stage rinsing process ensures that surface hydrocarbon residues are <10 μg/cm² (tested in accordance with ASTM E2041 method) and metal ion contamination is <1 μg/cm² (tested in accordance with ASTM E1921 method), reaching aviation cleanliness level A standards. The surface of Gouda has excellent wettability. When laminating composite materials, the resin is more fully infiltrated, and the interface bonding strength is increased by more than 30%. The surface of the material after surface treatment forms a uniform micro-rough structure, and the coating bonding force is improved. It is suitable for surface modification processes such as PVD/CVD coating and plasma spraying, and expands the application boundaries of the material.

4. Why Is Match Application Scenarios with Technical Requirements Important?

(1) What Should You Know About Aerospace Large Thin-walled Structural Parts?

Modern aircraft pursue the ultimate thrust-to-weight ratio, and replacing traditional riveted components with large overall thin-walled structural parts is an important direction. Ti-15V-3Al-3Cr-3Sn titanium foil can be used to manufacture airfoil skins, hatches, fairings and other components. The area of ​​a single piece can reach several square meters and the thickness is 0.3-0.8 mm. Complex curved surfaces can be formed in one step through superplastic forming or diffusion joining (SPF/DB) processes. The solution-treated material has superplasticity at 700-800℃, with an elongation of more than 500%, and can be fully adhered to the mold. The aging treatment after forming makes the strength reach 1200 MPa, which meets the structural load-bearing requirements. This process reduces the number of parts by 60%, the weight by 15-20%, and the production cycle by 40%.

(2) What Should You Know About EMI Shielding and Cooling Components for the Electronics Industry?

5G communications and high-performance computing equipment face serious electromagnetic interference and thermal management challenges. The 0.05-0.15 mm thick Ti-15V-3Al-3Cr-3Sn foil is stamped and formed into a shielding cover and a thermal conductive plate. Its non-magnetic characteristics avoid the impact on high-frequency signals. Under the conditions of 1 GHz frequency band and material thickness of 0.1 mm, the shielding efficiency can reach more than 80 dB (tested according to ASTM D4935 method). The material’s high thermal conductivity (17 W/m·K) combined with its lightweight properties reduces the weight of the heat dissipation component by 50% and improves heat dissipation efficiency. Large-width products reduce splicing gaps and eliminate electromagnetic leakage paths. Large-format integrated shielding layers are replacing traditional multi-piece splicing solutions in base station equipment and server chassis, and reliability is significantly improved.

(3) What Should You Know About Chemical Anti-corrosion and Medical Implantable Devices?

The lining of chemical equipment is traditionally welded with small pieces of material, and the welds become corrosion weak points. Wide-width titanium foil can achieve large-area seamless coverage of reactors and pipelines, reduce the number of welds by 80%, and extend the service life by 3-5 times. In harsh media such as 20% boiling nitric acid, 10% sulfuric acid, and 10% sodium hydroxide solution, the self-healing ability of the passivation film on the surface of the material ensures long-term stability, but the actual corrosion rate needs to be evaluated based on specific concentration and temperature conditions. In the medical field, 0.1-0.3 mm foil is processed into skull repair plates and sternum fixation plates, which are formed by three-dimensional bending to fit the anatomical structure. The high strength after aging meets the load-bearing requirements. Titanium alloys have good biocompatibility, while X-ray transparency depends on the material thickness and X-ray energy. Not all titanium alloys perform well, and implants can exist stably in the body for a long time without causing rejection reactions.

Table 3: Recommended specifications for different application scenarios

How Should Key Points for Supplier Evaluation and Purchasing Decisions?

What Should You Know About Technical Capability Review Dimensions?

It is the basis to inspect the equipment level of the supplier, focusing on whether it has a precision rolling mill with more than 20 rollers, which is a necessary condition for stable production of ultra-thin specifications below 0.05 mm. The temperature control accuracy and protective atmosphere purity of the continuous annealing line directly affect the consistency of material performance. Argon protection or vacuum annealing is standard for high-end products. The completeness of the online inspection system determines the quality control capability. Laser thickness measurement, eddy current flaw detection, and visual inspection should achieve full coverage. Process R&D capabilities are reflected in the ability to provide customized heat treatment specifications. Different application scenarios have very different requirements for solution temperature and aging parameters. Suppliers should have process development and verification capabilities and provide detailed process windows and performance data packages.

What Should You Know About Quality System and Certification Qualifications?

Aerospace applications must require suppliers to pass AS9100 quality management system certification, which is the threshold for entering the supply chain. Nadcap special process certification (heat treatment, non-destructive testing, etc.) proves that its key process capabilities are recognized by international authoritative organizations. Materials must comply with AMS 4983 (annealed state, current version AMS 4983F) and AMS 4984 (aged state, current version AMS 4984F) standards. Suppliers should provide a material certificate (MTC), including complete data such as heat batch number, chemical composition, and mechanical properties. The perfection of the traceability system is related to the rapid location of problems when they occur. The identification and record keeping of the entire process from raw materials to finished products should be no less than 15 years, which is a mandatory requirement in the aviation field.

What Should You Know About Supply Stability and Service Capabilities?

The scale of production capacity determines the predictability of the delivery cycle. Professional production lines with an annual production capacity of more than 3, 000 tons can ensure delivery of regular orders in 2-4 weeks and customized specifications in 4-6 weeks. However, it is necessary to confirm whether the production capacity is the production capacity of Ti-15-3 single variety. In terms of inventory strategy, high-quality suppliers will maintain a certain amount of inventory of commonly used specifications to meet urgent needs. Technical service capabilities include on-site support from application engineers, failure analysis, process optimization suggestions and other value-added services, which are particularly important in the new product development stage. Suppliers with a global layout can provide localized services and rapid response, and have service centers or warehousing logistics nodes in North America, Europe, and Asia, which can significantly reduce the procurement cycle and logistics costs.

Why Is Cost Structure and Value Assessment Important?

The price of Ti-15V-3Al-3Cr-3Sn titanium foil is usually 1.8-2.5 times that of Gr2 pure titanium, but a full life cycle cost analysis should be performed. The high formability of the material reduces the scrap rate. The yield rate of complex parts increases from 40% to 75% of traditional materials, and the actual material consumption cost is reduced. The reduced welding and assembly man-hours saved by integrated forming can reach several hours per piece, and the labor cost savings often exceed the material cost increase. The added value of products brought about by performance advantages is even more significant. A 10% weight reduction in aviation parts corresponds to an improvement in fuel economy worth hundreds of thousands of dollars over the entire life of the aircraft. It is recommended to establish a total cost of ownership (TCO) model to make decisions based on material cost, processing cost, quality cost, and use value.

5. What Is the Conclusion?

The procurement of Ti-15V-3Al-3Cr-3Sn titanium foil requires the establishment of a multi-dimensional evaluation framework: technical parameters match application needs, production processes ensure stable quality, and supplier capabilities ensure long-term cooperation. The material’s unique “forming first and then strengthening” process characteristics provide an effective solution for lightweighting complex structural parts. However, to fully realize its value, purchasers and suppliers need to collaborate deeply in process development, quality control, and application verification to establish strategic partnerships rather than simple sales transactions.

FAQ

Q1: How to choose the solution treatment state and aging state of Ti-15V-3Al-3Cr-3Sn titanium foil?

The material in the solution-treated state has excellent plasticity and is suitable for complex forming. The elongation can reach more than 25% and is suitable for secondary processing such as deep drawing and bending. The strength of the aged state increases by more than 50% but the plasticity decreases, making it suitable for the final use state after completed forming. In practical applications, the process of “solid solution treatment state procurement-forming processing-user’s own aging” is often adopted to ensure processability and obtain final high strength.

Q2: How to ensure the quality of 0.02 mm ultra-thin titanium foil?

Ultra-thin specifications have extremely high requirements on production equipment and process control. A rolling mill with more than 20 rollers is required to provide uniform pressure distribution and cooperate with a laser online thickness measurement system for real-time feedback control. High-quality suppliers will conduct full-width thickness scanning inspections and provide thickness distribution maps to ensure that the thickness deviation at any position is controlled within ± 0.005 mm, and special tension control is used to avoid edge wrinkling or tearing.

Q3: What should we pay attention to during transportation and storage of wide-width titanium foil?

Wide-width thin materials are easily damaged by external forces and should be protected by three layers of paper tube core winding, outer moisture-proof packaging, and wooden box fixing. The storage environment must be kept dry (relative humidity <60%), clean and non-corrosive gases, and avoid direct contact with dissimilar metals such as steel to prevent galvanic corrosion. Coiled materials should be stored upright or use special brackets to avoid deformation caused by laying them flat. They should be used as soon as possible after opening to maintain surface cleanliness.

How Should Looking for Professional Suppliers of Ti-15V-3Al-3Cr-3Sn Titanium Foil?

As a professional manufacturer, Baoji Tigu Titanium Nickel and Zirconium Materials Processing Co., Ltd. has a 750mm 20-roll precision rolling mill, a continuous vacuum annealing line and a full-process quality traceability system. It can stably supply Ti-15V-3Al-3Cr-3Sn near-beta titanium alloy foils with a thickness of 0.02-1.0mm and a width of 15-680mm. It provides dual-state supply in solution treated state and aging state. The product has excellent cold formability (elongation ≥ 25%) and aging strengthening ability (strength ≥ 1100MPa), and the oxygen content is strictly controlled ≤ 0.13%. We provide customized products and complete material certificates that comply with AMS 4983/4984 standards for global aerospace, precision electronics, EMI shielding and medical implant customers. Contact sales@titaniumvalleys.com immediately to obtain technical solutions and samples.
