Nickel 200 vs. Nickel 201 Foils: Understanding the Key Differences

1. Chemical Composition

(1) The Decisive Role of Carbon Content

Nickel 200 and Nickel 201 both belong to the industrial pure nickel series, yet they exhibit significant differences in chemical composition, physical properties, and applicable service ranges. The carbon content standard for Nickel 200 is <=0.15%, whereas Nickel 201 strictly controls carbon at <=0.02%. This seemingly minor discrepancy determines that Nickel 201 demonstrates excellent resistance to graphitization in high-temperature environments (above 315 deg C), while Nickel 200 is more suitable for ambient or moderate-temperature applications. This article provides a comprehensive comparison of Nickel 200 and Nickel 201 foils across five dimensions: chemical composition, mechanical properties, corrosion resistance, formability, and application fields.

Carbon content is the most critical indicator distinguishing Nickel 200 from Nickel 201. The upper limit for carbon in Nickel 200 is 0.15%, while Nickel 201 upper limit is merely 0.02%–nearly an order of magnitude lower. This low carbon content enables Nickel 201 to avoid the precipitation of nickel carbide (Ni3C) at elevated temperatures, thereby preventing graphitization.

(2) Comparison of Other Elements

Both materials maintain a nickel content of >=99.0% (typical value: 99.6% for both Nickel 200 and Nickel 201), iron content <=0.5%, copper content <=0.2%, manganese content <=0.35%, silicon content <=0.35%, and sulfur content <=0.01%. In terms of principal alloying elements, there is virtually no difference between the two.

2. Mechanical Properties Comparison

(1) Room-Temperature Mechanical Properties

Annealed Nickel 200 and Nickel 201 foil exhibit very similar room-temperature mechanical properties:

• Tensile strength: Nickel 200: 380-480 MPa; Nickel 201: 380-470 MPa
• Yield strength (0.2% offset): Nickel 200: 125-170 MPa; Nickel 201: 125-165 MPa
• Elongation: Both >=35%
• Hardness: HB 70-90

(2) High-Temperature Mechanical Properties

Within the temperature range of 315-600 deg C, Nickel 201 exhibits superior strength and plasticity compared to Nickel 200. This is because Nickel 200 is prone to graphitization at elevated temperatures, leading to grain-boundary weakening. Due to its low carbon content, Nickel 201 maintains stable mechanical properties throughout this temperature interval.

3. Corrosion Resistance Comparison

(1) Alkali Corrosion Resistance

Both materials demonstrate excellent corrosion resistance in alkaline solutions, with virtually no difference. In sodium hydroxide (NaOH) solutions with concentrations up to 50%, even at boiling temperatures, the corrosion rates of both Nickel 200 and Nickel 201 remain below 0.05 mm/year.

(2) High-Temperature Oxidizing Environments

In high-temperature oxidizing environments above 315 deg C, Nickel 201 performs significantly better than Nickel 200. Nickel 200 may experience surface graphitization at this temperature, causing the material to crumble and spall; Nickel 201, lacking sufficient carbon, does not suffer from this issue.

(3) Organic Acids and Salt Solutions

In organic acids (e.g., acetic acid, formic acid) and salt solutions (e.g., sodium chloride, sodium sulfate), the corrosion resistance of Nickel 200 and Nickel 201 is essentially equivalent.

4. Fabrication Properties

(1) Cold Forming

Annealed Nickel 200 and Nickel 201 both possess excellent cold formability, allowing deep drawing, bending, flanging, and other forming operations. There is virtually no difference in cold forming performance between the two grades.

(2) Weldability

Both materials can be welded using conventional processes such as TIG, MIG, and resistance welding, with weld joint properties comparable to the base metal. It is recommended to use filler metals of matching composition during welding.

(3) Hot Working

Nickel 201 has a slight advantage over Nickel 200 in high-temperature forging and rolling due to its superior hot plasticity and wider hot-working temperature window.

5. Application Fields Comparison

(1) Typical Applications of Nickel 200

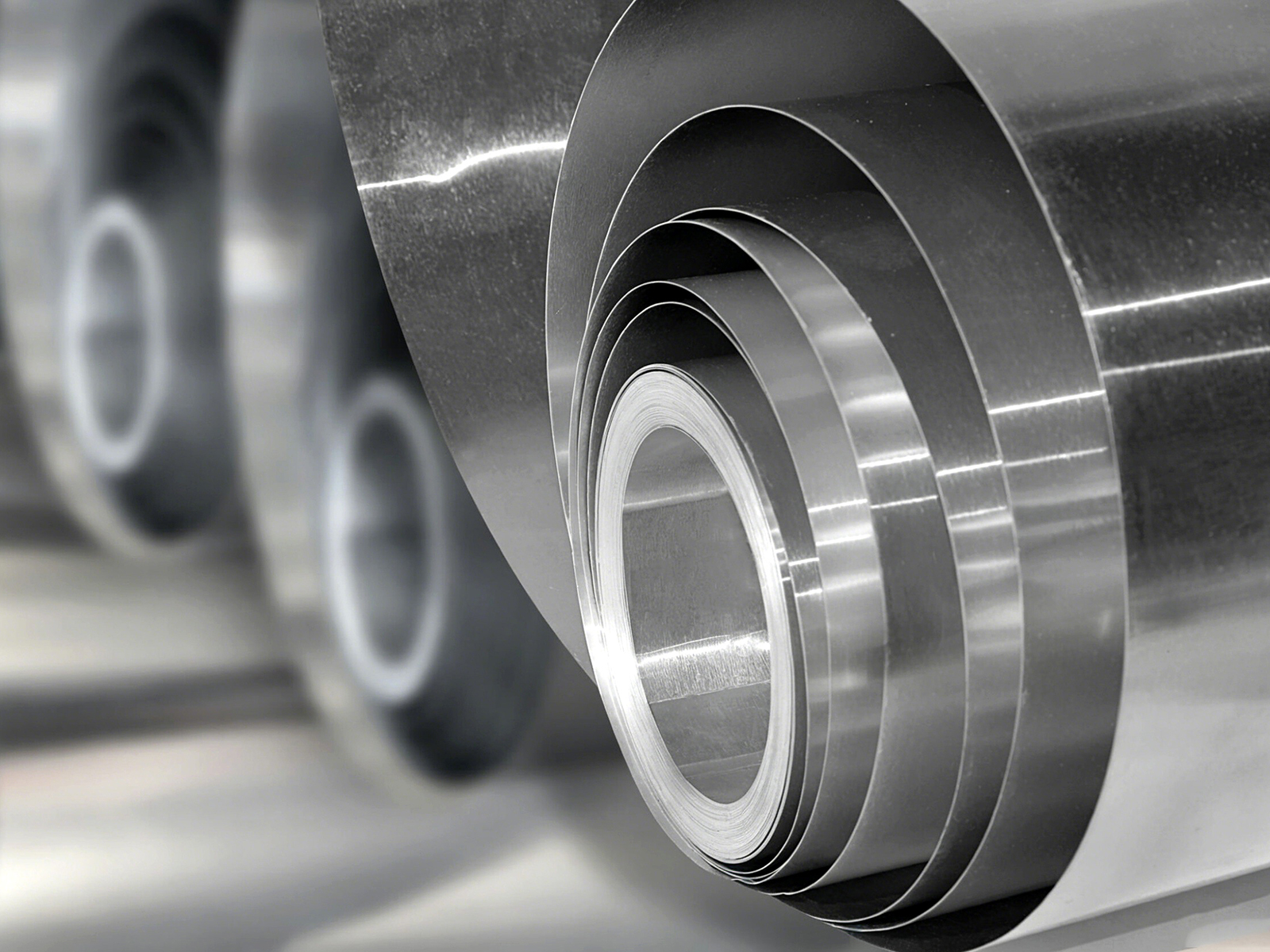

Nickel 200 foil is widely used in ambient or moderate-temperature (<315 deg C) applications, including:

• Plating tank linings and anode baskets
• Ambient-temperature chemical processing equipment
• Food industry processing equipment
• Electronic industry conductive components
• Pharmaceutical equipment linings

(2) Typical Applications of Nickel 201

Nickel 201 foil is primarily used in high-temperature (>315 deg C) applications, including:

• High-temperature electrolytic cells (e.g., caustic soda evaporation and concentration equipment)
• Heat-treatment furnace components
• High-temperature heat exchangers
• Molten salt processing equipment
• Nuclear industry cooling systems

6. Conclusion

Nickel 200 and Nickel 201 foils are interchangeable in the vast majority of ambient and moderate-temperature applications. However, when the operating temperature exceeds 315 deg C, Nickel 201 should be preferred to avoid the risk of graphitization. When selecting between the two grades, comprehensive consideration should be given to factors such as actual operating temperature, corrosive medium, and cost.

FAQ

Q1: Can Nickel 200 and Nickel 201 be used interchangeably?

They are interchangeable in applications below 315 deg C. However, in high-temperature environments above 315 deg C, the use of Nickel 200 is not recommended; Nickel 201 should be selected instead.

Q2: Why is Nickel 201 more expensive than Nickel 200?

Nickel 201 production requires stricter decarburization processes and greater smelting difficulty, so its price is typically 5-10% higher than that of Nickel 200.

Q3: How can Nickel 200 and Nickel 201 be quickly distinguished?

They cannot be distinguished by appearance alone. Spectral analysis must be used to determine carbon content: carbon content >0.05% indicates Nickel 200, while carbon content <=0.02% indicates Nickel 201.
