What Makes Ni200 Nickel Wire So Versatile?

Ni200 Nickel Wire works well for high-performance conductive parts in harsh industrial environments. This high-purity commercial nickel wire has Ni+Co content above 99.0%. It features great alkali resistance, reliable electrical and thermal conductivity, and excellent ductility. It is a key functional material for chemical, electronic, medical and aerospace industries. It solves corrosion problems from strong alkaline media. It keeps stable performance at medium temperatures. It fits precision equipment under low magnetic interference. Proper selection and use of Ni200 Nickel Wire raise production efficiency and cut overall costs.

1 Material Characteristics and Core Advantages of Ni200 Nickel Wire

1.1 Unique Properties of High-purity Nickel Base

Ni200 Nickel Wire uses high-purity nickel as raw material. Total nickel and cobalt content reaches over 99.0%. Low impurities reduce medium contamination during chemical processes. Pure nickel delivers more stable electrode performance than common nickel alloys. It is ideal for electrolytic cells and electroplating equipment with strict purity rules. Precise composition control ensures reliable performance in various industrial conditions.

1.2 Comprehensive Corrosion Resistance

Ni200 Nickel Wire resists corrosion well in alkaline solutions. It is widely used in chlor-alkali and caustic soda production. It also works steadily in reducing media and seawater or salt spray. Do not use it in high-temperature oxidizing acid such as hot nitric acid. It suffers sulfide corrosion in sulfur-bearing gas above 315 ℃. Avoid these two working scenarios during application.

1.3 Basic Physical and Mechanical Properties

Its density is 8.90 g/cm³ and melting point is about 1455 ℃. High melting point ensures good stability at high temperatures. Resistivity stands at 6.84 × 10⁻⁸ Ω·m and thermal conductivity is 90.7 W/(m·K). Both values outperform ordinary stainless steel. Annealed Ni200 Nickel Wire has tensile strength above 380 MPa, yield strength over 100 MPa and elongation above 30%. Hardness ranges from 90 HV to 120 HV. This combination provides sufficient strength and good ductility for forming work.

1.4 Low Magnetism and Good Workability

Annealed Ni200 Nickel Wire has low permeability. It suits equipment sensitive to magnetic fields. Excellent ductility supports cold drawing, bending and welding. Manufacturers make round wire, square wire and hexagonal wire to meet different structural needs. Its weld quality stays stable and rarely forms cracks. It simplifies production of complex components.

2 Specification System and Quality Standards

2.1 Full Range of Size Options

Ni200 Nickel Wire covers diameter from φ0.1 mm to φ10 mm. Standard size φ1 mm ~ φ5 mm fits general electronic and electrical parts. Larger size φ5 mm ~ φ10 mm serves chemical industrial equipment. We customize ultra-fine wire below φ0.1 mm per request. Available length ranges from 300 mm to 6000 mm. We also make special lengths. Straightness stays within 1 mm per meter to guarantee smooth operation on automatic lines.

Note: Actual tolerance changes with production process and wire diameter. Refer to technical data from suppliers.

2.2 International Standard Compliance

Ni200 Nickel Wire follows ASTM B160 and JIS H 4551. Its UNS number is N02200. It adapts to requirements of different regional markets. Each batch comes with inspection documents complying with EN 10204 3.1. Reports include full composition and dimensional data to pass third-party audits.

2.3 Surface Types and Treatment Processes

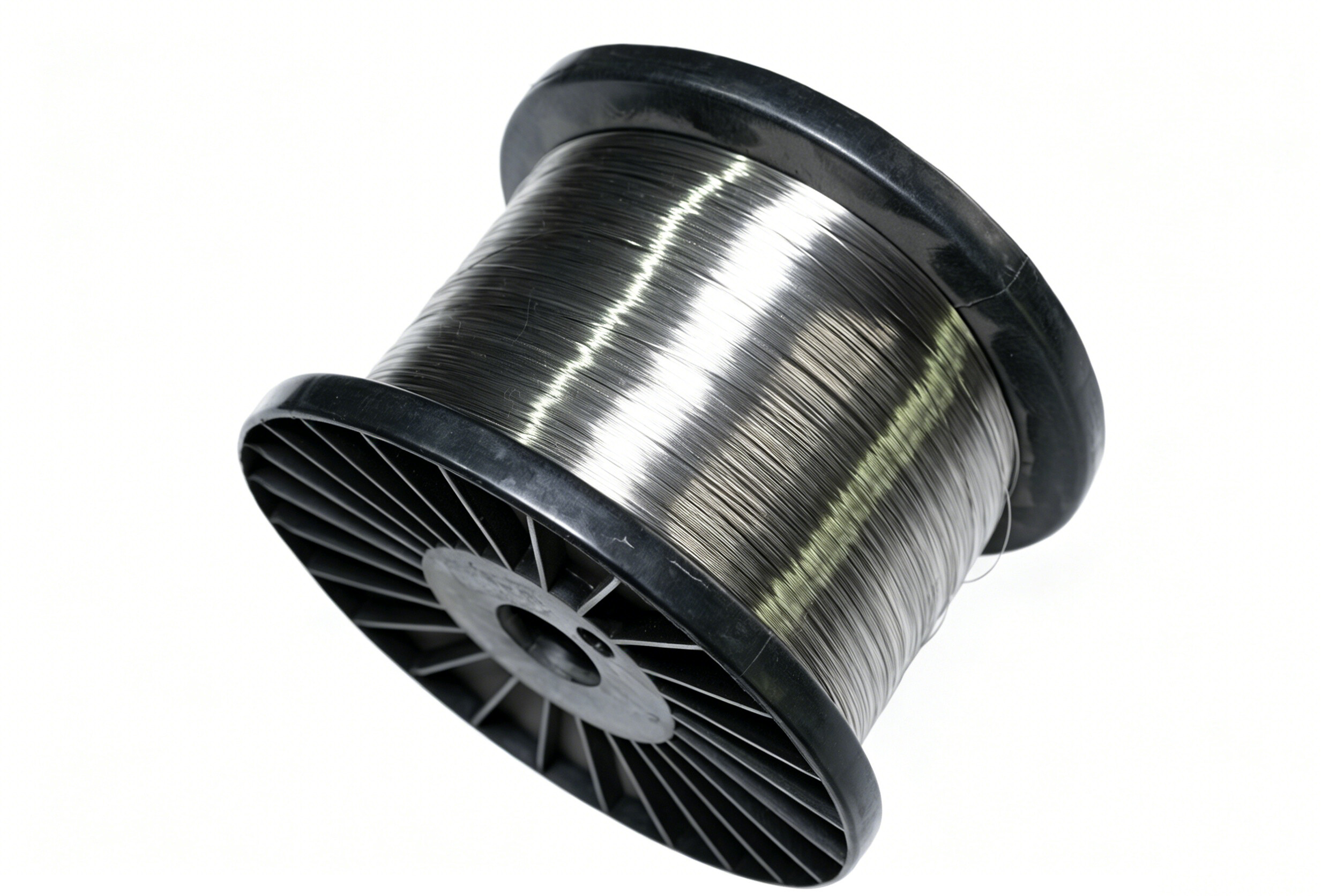

• We supply spooled wire and straight wire. Spooled wire fits continuous mass production. Straight wire facilitates precision machining and direct assembly. Four common surface types are available:
• Bright surface: Good luster for decorative and high-purity applications
• Semi-bright surface: Balanced appearance and cost
• Pickled surface: Removes surface oxide for general industrial use
• Polished surface: Top surface quality for high-standard scenarios

Choose bright or polished surface for medical and precision electronic products. Select pickled surface for regular chemical equipment. Use ultrasonic cleaning to remove chips and oil and keep oxide layer intact.

2.4 Chemical Composition Requirements

Note: Refer to the latest standard version for detailed composition rules.

Strict composition control keeps consistent performance across batches. Every batch undergoes full inspection to support complete quality traceability.

3 Typical Application Scenarios and Solutions

3.1 Corrosion Protection for Chemical and Chlor-alkali Industry

Ni200 Nickel Wire works as connecting parts for electrodes in electrolytic cells. It stays stable in high-concentration alkali liquid under current load. It extends equipment service life and cuts maintenance frequency. It also makes corrosion-resistant fasteners and pipe connectors for petrochemical facilities. It maintains structural integrity in media with sulfide and chloride.

3.2 Precision Parts for Electronic Industry

Ni200 Nickel Wire makes coils for transformers and inductors. Low resistance reduces energy loss and raises equipment efficiency. It is widely used as tab material for lithium-ion and nickel-based batteries. Stable conductivity and reliable weld performance benefit new energy production. It also acts as resistance wire and heating element for industrial and laboratory heating devices.

3.3 Biocompatible Parts for Medical Devices

Medical guide wires, stents and probes require low magnetism, non-toxic property and corrosion resistance. Ni200 Nickel Wire meets these rules. It creates little magnetic interference in MRI equipment. It stays stable in body fluid. Smooth surface reduces irritation to human tissue. Its good ductility supports production of micro ultra-fine wire for minimally invasive tools.

3.4 Special Components for Aerospace

Ni200 Nickel Wire makes furnace parts, heating elements and fixtures for aerospace equipment. It retains stable mechanical performance under repeated thermal cycles below 315 ℃. It has excellent low-temperature ductility and never fractures at -196 ℃. It suits low-temperature working parts on spacecraft.

3.5 Precision Machinery and General Hardware

Clock parts, precision springs and small connectors demand tight dimensional tolerance and uniform material quality. Ni200 Nickel Wire meets these needs and ensures long stable operation. It is also used for automotive wires and durable hardware. Its cost advantages become more obvious in mass application.

4 Selection Guide and Custom Service

4.1 Confirm Key Working Parameters

Check medium type, temperature, pressure and pH value before selection. Ni200 Nickel Wire works best in alkaline environments. Avoid high-temperature oxidizing acid and sulfur-rich gas. Recommended working temperature ranges from -196 ℃ to 315 ℃. Choose annealed wire for bending work. Select cold-worked wire for parts needing high strength.

4.2 Reasonable Size Selection

Calculate wire cross-section based on current density and heat dissipation for conductive parts. Work out minimum diameter plus safety margin according to load for structural parts. Choose spooled wire for automatic production. Use straight wire for manual work and precision cutting.

4.3 Selection of Surface and Quality Grade

Match surface type with actual usage, following the introduction in Section 2.3. Pick high-grade material with full certificates for aerospace and medical products. Select standard qualified products for regular industrial use.

4.4 Custom Production and Technical Support

We customize wire diameter, length and surface finish per requests. We support small trial orders and large batch production. Our engineers analyze working conditions and provide material reports. We also share guidance on welding, heat treatment and corrosion protection to solve on-site technical problems and shorten product development cycles.

4.5 Quality Control and Supply Stability

We conduct spectrum analysis, mechanical tests and dimensional checks for every batch. Full batch coding realizes traceability from raw material to finished goods. Stable inventory and logistics support on-time delivery for regular and urgent orders.

5 Process Technology and Performance Optimization

5.1 Production Flow

We start with high-purity nickel rod. Multiple cold drawing gradually reduces wire diameter. Intermediate annealing after each pass removes work hardening and restores ductility. We control temperature and holding time precisely during heat treatment. We adopt mechanical polishing and pickling for surface treatment. Final inspection covers dimension, appearance and performance before packaging.

5.2 Performance Adjustment via Heat Treatment

Adjust annealing temperature and holding time to change mechanical properties. Anneal at 650 ℃ ~ 900 ℃ for full recrystallization and maximum ductility. Control cold deformation and low-temperature annealing to keep high strength for cold-worked wire. We also apply stepped annealing and rapid cooling for special performance requirements.

5.3 Surface Quality Control

Use protective atmosphere or vacuum bright annealing to prevent oxidation. Control time and temperature during pickling to avoid over-corrosion. Polish step by step with different abrasives. Apply ultrasonic cleaning to remove oil and particles. These methods keep wire surface free from oxide, crack and burr and maintain good straightness.

5.4 Inspection and Verification Methods

Use spectrum equipment to test chemical composition. Run tensile and hardness tests for mechanical properties. Use precision gauges to check size and straightness. Observe grain structure via metallographic analysis. We also run corrosion tests, conductivity tests and non-destructive checks for special applications.

5.5 Performance Maintenance during Application

Avoid long-term service in high-temperature oxidizing gas and sulfur-rich gas. Use TIG or resistance welding for nickel wire. Clean surface oil and oxide before welding. Control heat input and apply post-weld stress relief. Set proper bending radius to prevent cracks. Store wire in dry and clean area. Apply protective grease for long-term storage.

Conclusion

Ni200 Nickel Wire combines high purity, excellent alkali resistance, stable conductivity and low magnetism. Custom size, surface and heat treatment further optimize its performance. It serves chemical, electronic, medical and aerospace industries widely. Proper material selection and application cut costs and raise overall operational efficiency.

FAQ

1. What advantages does Ni200 Nickel Wire have over common nickel alloy wire?

Nickel 200 has Ni+Co content above 99.0% with low impurities. It causes less medium contamination in chemical and electrochemical work. Its conductivity and corrosion resistance are more stable. It fits high-standard application scenarios.

2. How to judge if Ni200 Nickel Wire suits your working conditions?

Choose it for working environments with alkali, partial reducing acid, seawater, stable conductivity and low magnetic requirements. Keep working temperature between -196 ℃ and 315 ℃. Do not use it in high-temperature oxidizing acid or sulfur-containing gas.

3. What is the lead time for custom Ni200 Nickel Wire?

Standard stock goods ship within one week. Small custom batches take 2 to 3 weeks. Mass production takes 4 to 6 weeks. We provide quick sample service for urgent verification.

Contact Titanium Valley

Baoji Titanium Valley Titanium Nickel Zirconium Material Processing Co., Ltd. is a professional manufacturer and supplier of high-purity nickel wire. We have advanced production lines and complete quality systems. We deliver customized Ni200 Nickel Wire solutions for global clients. Send your technical requirements to sales@titaniumvalleys.com for samples, quotations and professional support.

References

1. China Nonferrous Metals Industry Association. Nickel and Nickel Alloy Processing Handbook [M]. Beijing: Metallurgical Industry Press, 2018.
2. Wang Zhendong, Li Guohua. Application Research of Commercially Pure Nickel in Chemical Corrosion Environment[J]. Corrosion and Protection, 2019, 40(5): 25-30.
3. Liu Guohua. Properties and Applications of Nickel 200 Alloy [M]. Beijing: Chemical Industry Press, 2015.
4. Zhang Ming, Chen Zhiqiang. Application of High-purity Nickel Wire in Electronic and Electrical Fields[J]. Electronic Components and Materials, 2020, 39(3): 12-17.
5. Zhao Feng, Zhou Jianhua. Welding Technology and Quality Control of Nickel and Nickel Alloys [M]. Shanghai: Shanghai Science and Technology Press, 2016.
